ELECTRIC HEAVY-DUTY COMPACT FORKLIFT

ELECTRIC HEAVY-DUTY COMPACT FORKLIFT

Category:

Up to 30t load capacity

Electric drive

Indoor and outdoor use

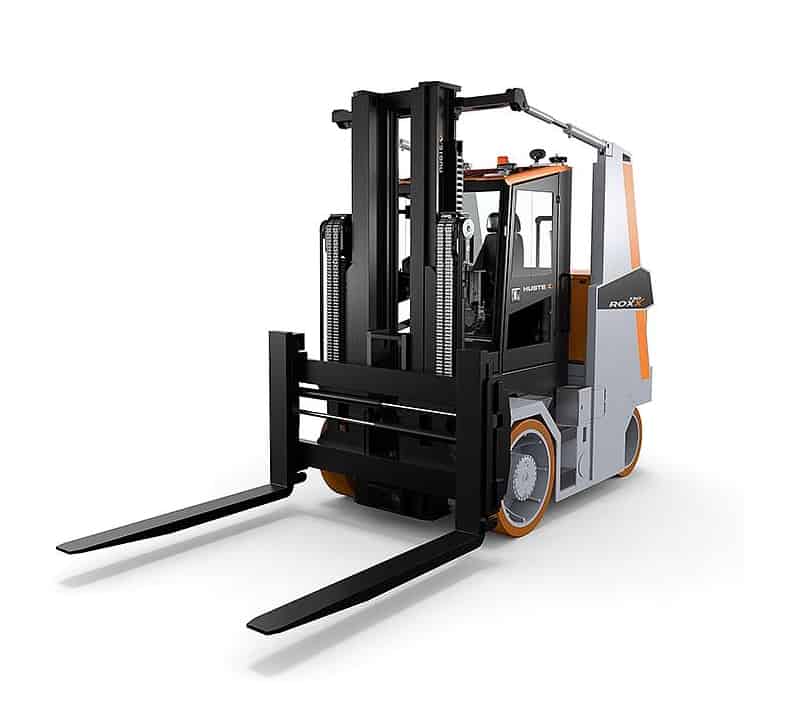

Wherever heavy loads need to be transported, handled or loaded in confined spaces, the HUBTEX RoxX electric heavy-duty compact forklift comes into its own. The RoxX is used both indoors and outdoors. In comparison with conventional forklift trucks, the RoxX is characterized by very compact external dimensions in length and width. In short: The HUBTEX compact forklift is used anywhere where conventional frontloaders cannot be used due to their significantly larger dimensions. All vehicles in the RoxX series have a sturdy, robust free-view lift mast and offer maximum maneuverability as well as optimum all-round visibility from the driver’s cab. The purely electric drive results in extremely energy-efficient, low-maintenance and quiet operation.

FEATURES

LIFT MAST
The design of the lift mast plays an extremely important role with our RoxX. On the one hand, the lift mast must be able to lift heavy loads and move safely, on the other hand, it must not restrict the driver’s view.
For optimum flexibility, the lift mast is available in various versions. Beginning with a 2-stage Simplex lift mast (standard model) with a lift height of 3400 mm, to a 2-stage lift mast with full free lift (Duplex) and a 3-stage lift mast with full free lift (Triplex). All models can tilt from -5° to +5°. HUBTEX will also design additional lift mast solutions to meet your individual requirements.
DRIVE
Our RoxX has a purely electric drive, offering 30% increased efficiency compared to vehicles with an electro-hydrostatic drive.
SERVICE ACCESS
Since there are no maintenance-intensive hydraulic devices, the service costs are reduced in addition to the low energy consumption. The modular design of the heavy-duty compact forklift also guarantees optimum access for maintenance and repair purposes. In addition, the driver’s cab can be easily folded down for servicing, enabling fast response times and ease of maintenance. Any battery changes that may be required are easy to carry out thanks to the fork pockets on the battery and a mechanical locking mechanism .
Series Load capacity (t) Lift height (mm) Tire equipment (optional) Drive Battery voltage (V) Cab
4160 8.0 to 30.0 user-specific PU / EL electric 80 Ergo driver’s seat cab
