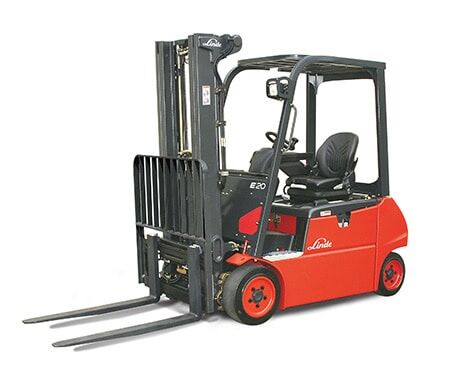

E18 / E20 / E20C / E20P Electric Counterbalanced Trucks
CHARACTERISTICS
Efficiency
Linde Energy Management System. With AC power modules mounted directly on the sealed drive axle, Linde has been able to eliminate all AC power cables. This means less power loss and more run time.
Confidence
Visibility. Linde’s nested mast design, coupled with both the lift chains and hydraulic hoses routed over top of the free lift cylinder maximizes both peripheral and through-the-mast visibility. This ensures the operator can see what is in front of them at all times.
Performance
Compact drive unit. All drive components are contained in a completely sealed drive axle with an IP54 rating. The dual AC drive motors are mounted in-line, allowing for exceptional run times and minimal wear.
Ergonomics
Easy to Operate. The Linde 346 has a multitude of features, including; adjustable armrest, fingertip controls, full suspension seat with three adjustment points and an adjustable steering column.
Maintenance
1000-hour maintenance intervals. The Linde 346 offers low maintenance costs because of features like; a completely sealed drive axle, in-line dual AC drive motors, automatic deceleration and a maintenance free brake system.
| Model | Chassis Configuration | Power Unit | Load Capacity (Q lb) |
Load Center (c in) |
Load Distance (x in) |
Wheelbase (y in) |
Tire Size: Front | Tire Size: Rear | Battery Voltage |
|---|---|---|---|---|---|---|---|---|---|
| E20P | 4-Wheel | Electric | 4000 | 24 | 15.4 | 61 | 200 / 50-10 | 16 x 6-8 | 36V or 48V |
| E18 | 3-Wheel | Electric | 3500 | 24 | 15.4 | 55.9 | 18 x 7 x 12 1/8 | 15 x 5 x 11 1/4 | 36V or 48V |
| E20C | 4-Wheel | Electric | 4000 | 24 | 15.4 | 61 | 18 x 7 x 12 1/8 | 15 x 5 x 11 1/4 | 36V or 48V |
| E20 | 3-Wheel | Electric | 4000 | 24 | 15.4 | 55.9 | 18 x 7 x 12 1/8 | 15 x 5 x 11 1/4 | 36V or 48V |
