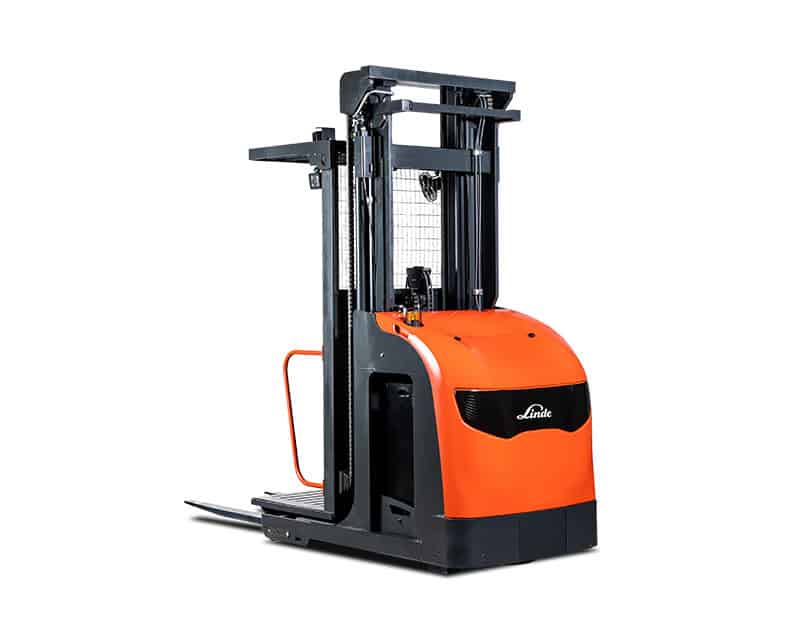

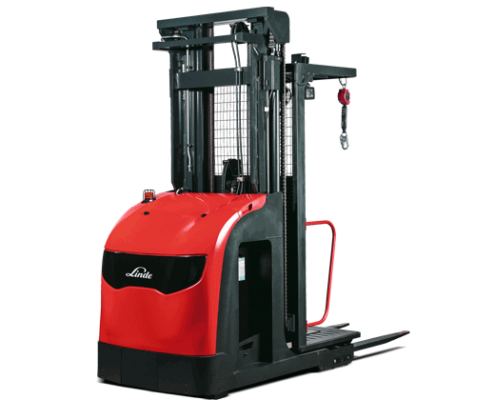

Order Picker – V15 Electric Narrow Aisle / Very Narrow Trucks
CHARACTERISTICS
Performance
Curve Control. Linde curve control automatically reduces driving speed depending on steering angle ensuring an extra level of safety.
Maintenance
Open access to components. Full access to key components is achieved without tools and directly in front of technician.
Efficiency
Unique Clamp Design. Automatically clamps and centers pallets with any stringer, ranging from 1″ – 5″. Eliminating the need for standardization of pallets or the use of workarounds.
Ergonomics
Operator Comfort. Large operator foot room and brake area with a premium floor mat, ensure enough space to comfortably change foot positioning throughout the day.
Confidence
Control Handle. The multi-function control handle is stationary allowing a solid 4-point stance position in the operator compartment with the use of a thumb tiller to travel. This handle has eliminated any wrist movements while keeping the operator feeling attached to the truck at all times.
| Model | Power Unit | Load Capacity(Q lb) | Load Center(c in) | Wheelbase(y in) | Tire Size: Front | Tire Size: Rear | Battery Voltage |
|---|---|---|---|---|---|---|---|
| V15 – 24V | Electric | 3000 | 23.6 | 56.1 | 13.5 x 5.3 | 4.9 x 4.1 | 24V |
| V15 – 36V | Electric | 3000 | 23.6 | 56.1 | 13.5 x 5.3 | 4.9 x 4.1 | 36V |
