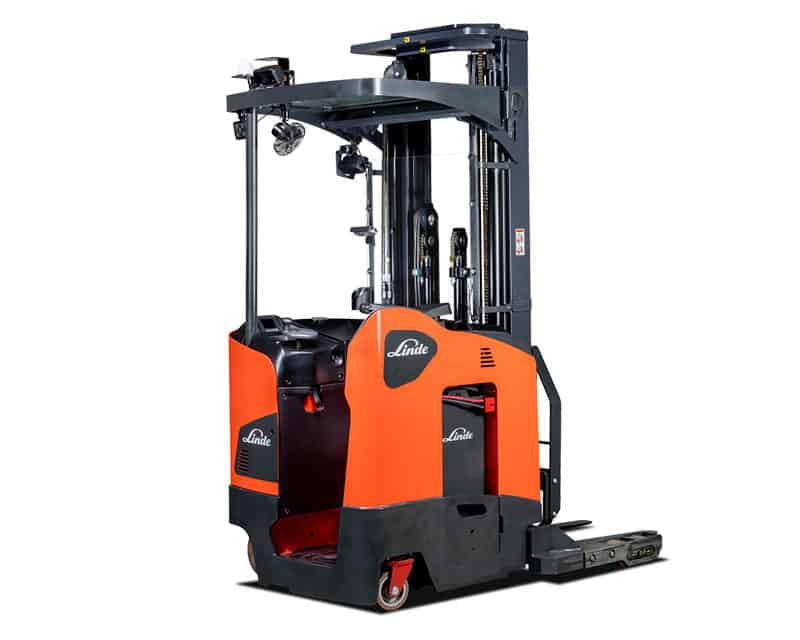

Reach Truck - R15SX / R17SX / R22SX Electric Narrow Aisle / Very Narrow Trucks

Reach Truck – R15SX / R17SX / R22SX Electric Narrow Aisle / Very Narrow Trucks

CHARACTERISTICS

Maintenance

Open access to components. With a service door that opens well beyond 90 degrees, a technician has full and easy access to all necessary componentry, allowing for the truck to get back in service faster.

ย

Ergonomics

Operator Comfort. The operator compartment’s adjustable steer tiller and control handle, coupled with the widest compartment in the industry, keeps an operator comfortable and productive all day long.

ย

Efficiency

Cushioned Hydraulics. Linde’s cushioned hydraulic system allows for delicate handling of any load. This increases operator efficiency while helping to guard from product damage.

ย

Confidence

Visibility. Linde’s glass overhead guard provides an operator with zero obstructions while looking through the overhead guard. This increases fork accuracy, and in turn, decreases cycle time and product damage.

ย

Performance

Powered Lowering. Linde’s powered lowering drastically increases lowering speeds, reducing overall cycle times and pumping energy back in to the battery. Extended run times and reduced cycle times make the 5195 series an efficient material handling solution.

ย

Model Power Unit Load Capacity
(Q lb)
Load Center
(c in)
Wheelbase
(y in)
Tire Size: Front Tire Size: Rear Battery Voltage
R17SX-24V Electric 3500 24 58.9 13.5 x 5.1 5 x 4 24V
R17SX-36V Electric 3500 24 60.9 13.5 x 5.1 5 x 4 36V
R22SX Electric 4500 24 60.9 13.5 x 5.1 5 x 4 36V
R15SX Electric 3000 24 60.9 13.5 x 5.1 5 x 4 36V
