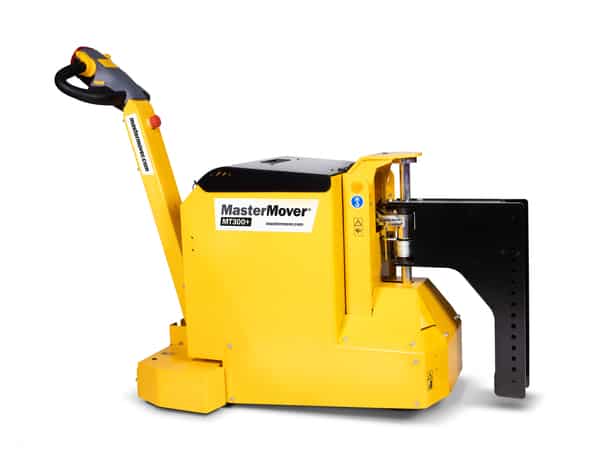

MasterTug® MT300+
The MasterTug® MT300+ utilises the use of a hydraulic weight transfer system to provide even weight distribution of heavy loads.
A quick release pin or combi-lock, coupled with the hydraulic lifting mast, allows the MT300+ to part-lift the attached load safely. This creates the traction needed to move loads of up to 6,600 lbs.
The addition of a variable speed control, self-adjusting castor guard and an automatic tiller release braking system keep the operator safe at all times.
To see how the MT300+ can help improve your safety and efficiency, book a free on-site demonstration
Key Features
- Push and Pull any load safely up to 6,600 lbs
- Interchangeable battery for 24/7 operation
- Tiller arm release automatic braking system
- Variable speed controls
- Hydraulic Weight Transfer for even weight distribution
- Self-adjusting castor guard
- Fully customisable and bespoke couplings

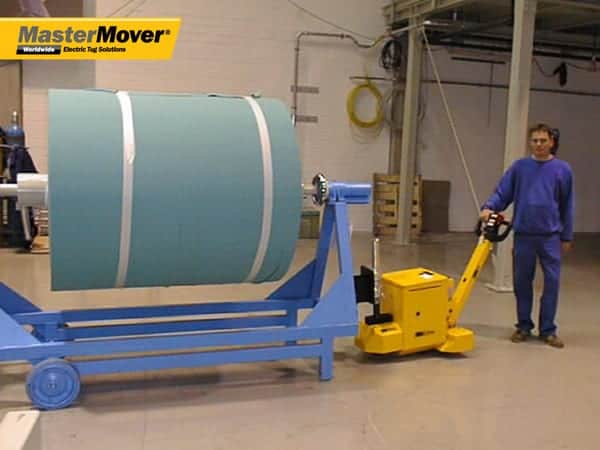

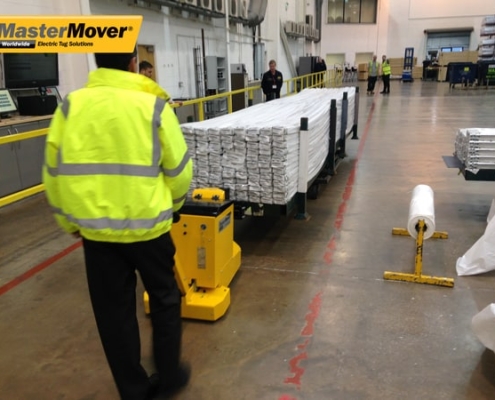

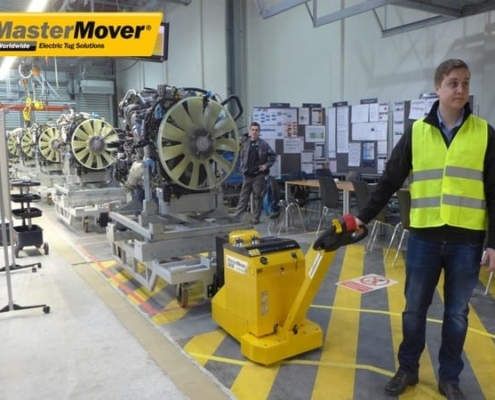

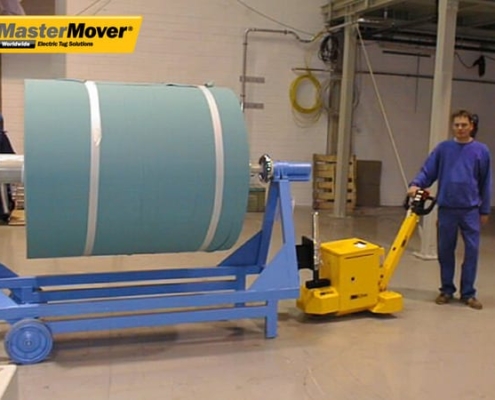

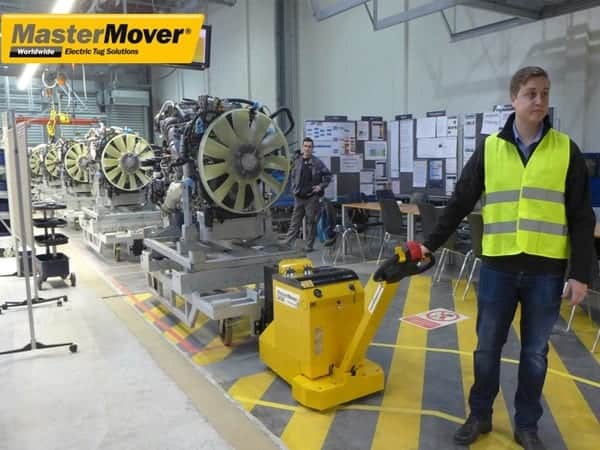

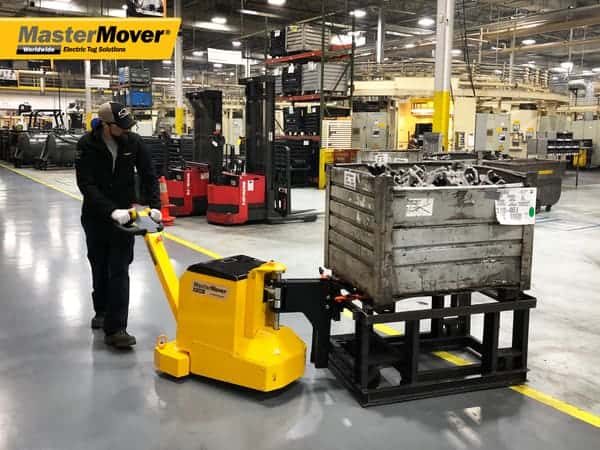

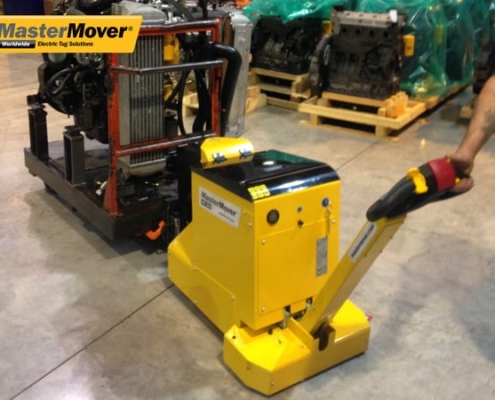

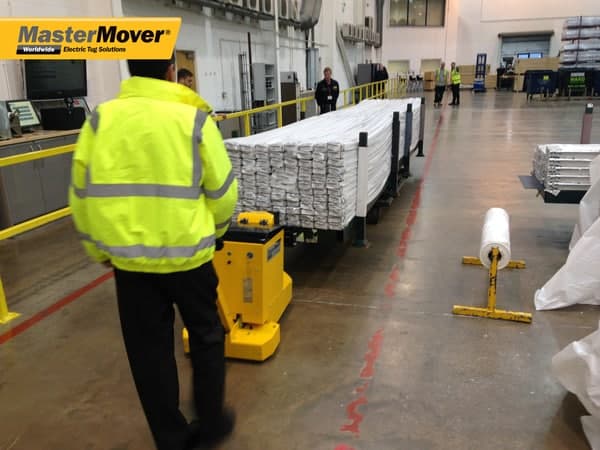

Application Gallery
Safety Features
Automatic cut off as tiller arm returns to vertical
Anti-crush button
Emergency stop button
Warning horn
Integrated Lift Point
Options
Flashing safety light and motion bleeper
Lithium battery
ATEX not available in the US
Variable speed selector

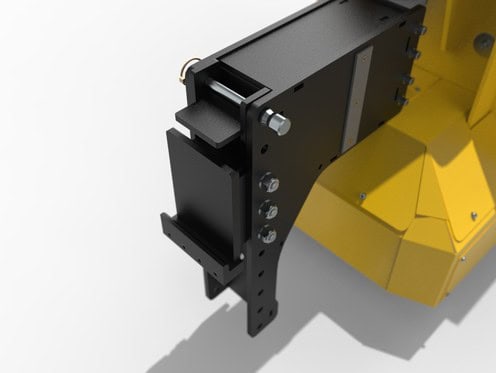

combi lock

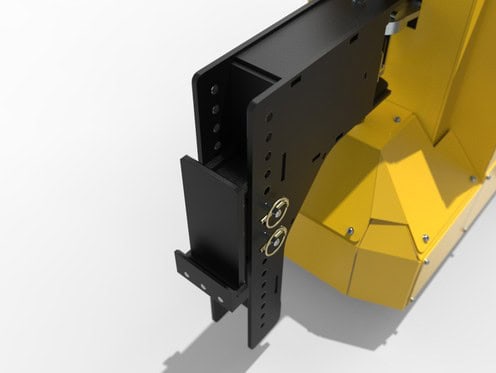

quick release coupling pins
Couplings
Coupling – male – pin
Coupling – male – height adjustable tow ball – 50mm
Coupling – male – adjustable towing arm
Coupling – male – height adjustable box – small – horizontal
Coupling – female – box
Bespoke couplings available
Technical Data
Identification
| Product code | MT300+ |
| Recommended load weight – Castors | 6,600 lbs |
| Recommended load weight – Rails | 26,000 lbs |
| Machine weight including battery | 500 lb |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Polyurethane |
| Drive motor power | 1.2 kW |
| Controller type | AC |
| Variable machine speed | 0.1 km/h – 3.1 km/h |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed | 73Ah 24V – interchangeable |
Charging options
| Charger – internal | 12.5A 24V – 110V-240V |
| Charger – external | 12.5A 24V – 110V-240V |
Additional equipment
| Flashing safety light and motion bleeper | |
| two speed selector switch | |
| battery protection system |
Male coupling options
| Coupling – male – height adjustable combi – medium | |
| Coupling – male – height adjustable box – medium | |
| Coupling – channel coupling body |
Female coupling options
| Coupling – female – box-medium | |
| Coupling – female – combi – medium |

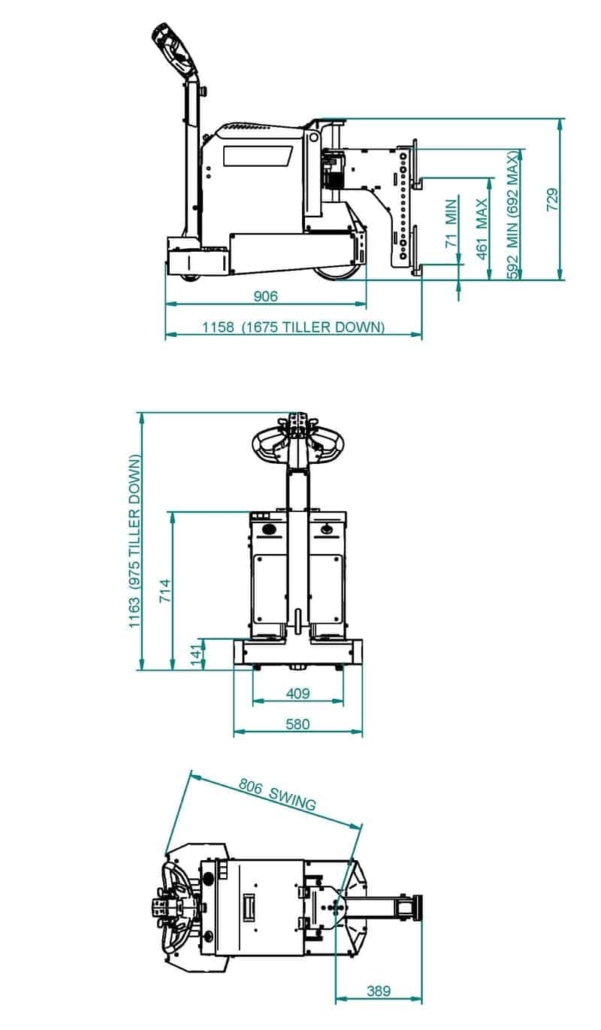

Dimensions
