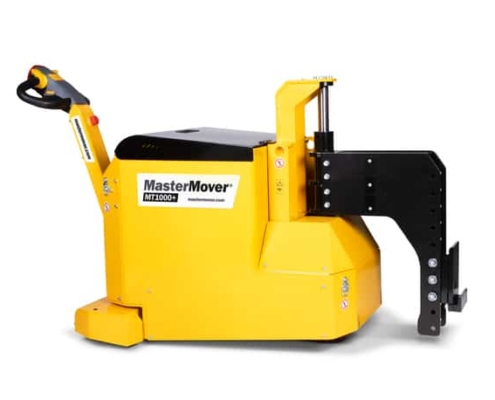

MasterTug MT1000+ | Electric Pedestrian Tug

MasterTug MT1000+ | Electric Pedestrian Tug

The MasterTug MT1000+ is designed to allow a single pedestrian operator to easily push, pull and steer wheeled loads weighing up to a maximum of 22,000 lb. As part of the MasterTug range, the MT1000+ features a mast secured at either end for strength and an automatic braking system that brings the tug and load to a stop if the controls are released. The tug uses hydraulic weight transfer for traction and the AC drive motor provides all the power it needs.

  • Battery monitoring system
  • FEA tested steel chassis
  • Dual secured mast
  • AC drive motor
  • Self-adjusting castor guard
  • Hydraulic weight transfer

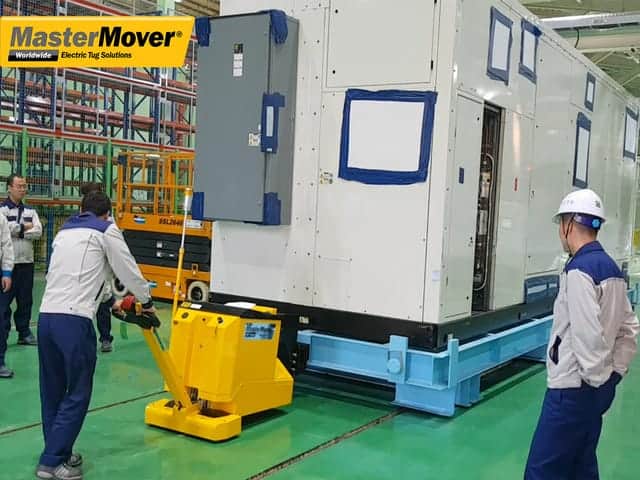

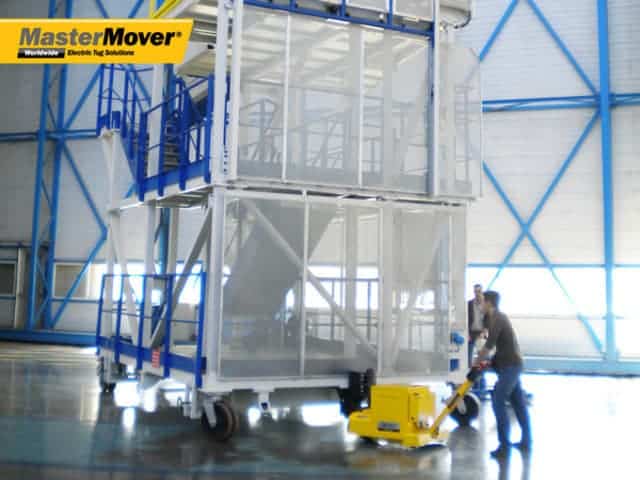

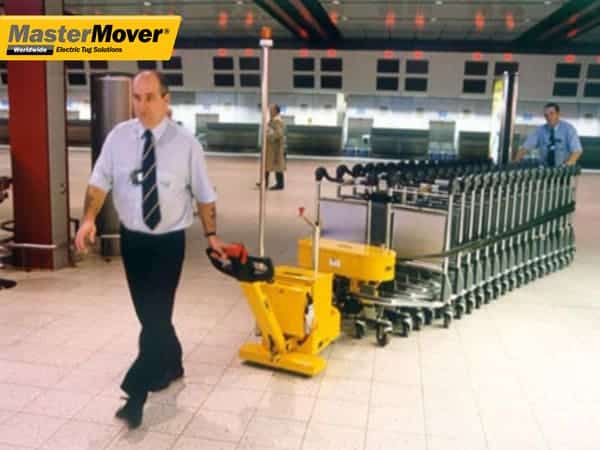

Application Gallery

Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn

 Self-adjusting castor guard for foot protection
Options

flashing safety light and motion bleeper

two speed selector switch

wireless control handset

combi lock

quick release coupling pins

battery protection system

Lithium battery

ATEX
Couplings

Coupling – male – height adjustable combi – medium

Coupling – male – height adjustable box – medium

Coupling – female – combi – medium

Coupling – female – box – medium

Coupling – channel coupling body

Bespoke couplings available
Technical Data

Identification

Product code MT1000+
Recommended load weight – Castors 22,000 lb
Recommended load weight – Rails 88,000 lb
Machine weight including battery 1,100 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 2 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph
Ingress Protection IP44

Battery options

Battery pack – sealed – 179Ah 24V – interchangeable

Charging options

Charger – internal – 20A 24V – 110V-240V
Charger – external – 30A 24V – 110V-240V

Additional equipment

Option – flashing safety light and motion bleeper
Option – two speed selector switch
Option – wireless control handset
Option – lifting and anchoring points
Option – battery protection system

Male coupling options

Coupling – male – height adjustable combi – large
Coupling – male – height adjustable box – large
Coupling – channel coupling body

Female coupling options

Coupling – female – combi – large
Coupling – female – box – large

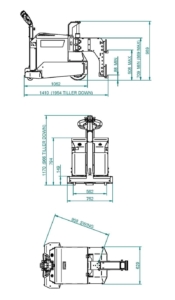

Dimensions
