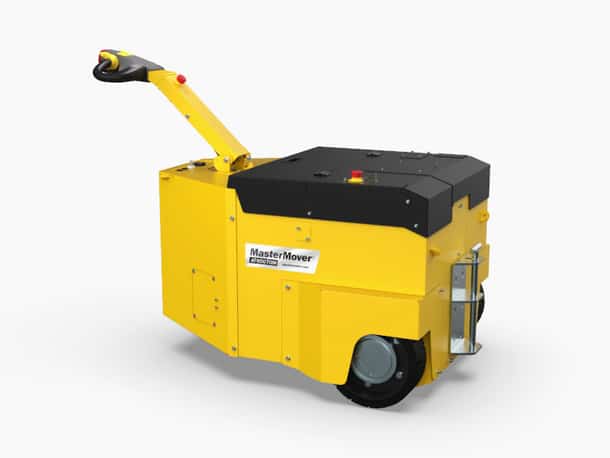

AT800 TOW | Electric Tow Tug
The AT800 TOW electric tug is perfect for safely towing loads where weight transfer is not possible, up to 18,000 lb. The tug is self-weighted and compact, providing excellent traction for effortless load towing whilst attaching to any load with a draw bar, towing eye or ball hitch fitting. It can be used inside or outside, including on slopes and less than perfect surfaces.
- FEA tested steel chassis
- Internal weight packs
- Optimised size, puncture -proof wheels

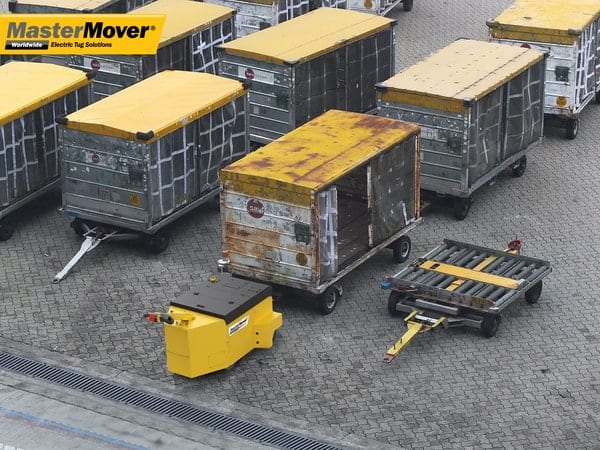

Application Gallery
Safety Features
Automatic cut off as tiller arm returns to vertical
 Anti-crush button
 Emergency stop button
 Warning horn
 Machine crawl coupling assist
Options
Flashing safety light and motion bleeper
 Lithium battery
 Fifth wheel
ATEX not available in the US
two speed selector switch
 Battery protection system
Wireless control handset
Couplings
 Coupling – male – pin
 Coupling – male – height adjustable tow ball – 50mm
 Coupling – male – height adjustable box
 Coupling – adjustable towing arm
 Machine crawl coupling assist
 Variable speed selector
Technical Data
Identification
| Product code | AT800 TOW |
Recommended load weight – Castors  |
8000 kg |
| Recommended load weight – Rails |
32000 kg |
| Machine weight including battery | 1150 kg |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Superelastic Solid Rubber |
| Drive motor power (electric steered option) | 2 x 2.0 kW |
| Controller type | AC |
| Variable machine speed | 0-3.7 mph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 179Ah 24V – interchangeable | Â |
| Battery pack – sealed – 119 Ah 24V – Interchangable | Â |
| Battery pack – lithium – 118 Ah 24V – fixed | Â |
Charging options
| Charger – external – 30A 24V – 85V-265V | Â |
| Charger – external – 20A 24V – 85V-265V | Â |
| Charger – internal – 20A 24V – 85V-265V | Â |
| Charger – lithium – external – 40A 24V – 265V | Â |
Additional equipment
| Option – flashing safety light and motion bleeper | Â |
| Option – two speed selector switch | Â |
| Option – fifth wheel | Â |
| Option – wireless control handset | Â |
| Option – battery protection system | Â |
| Option – Lithium battery | Â |
Male coupling options
| Coupling – male – pin | Â |
| Coupling – male – height adjustable tow ball – 50mm | Â |
| Coupling – male – height adjustable box | Â |
Female coupling options
| Coupling – female – box |

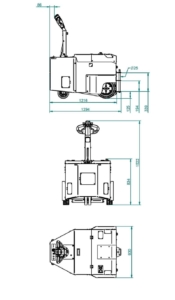

Dimensions
