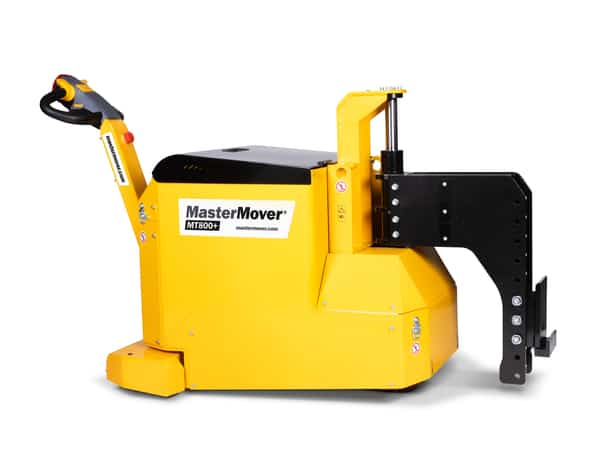

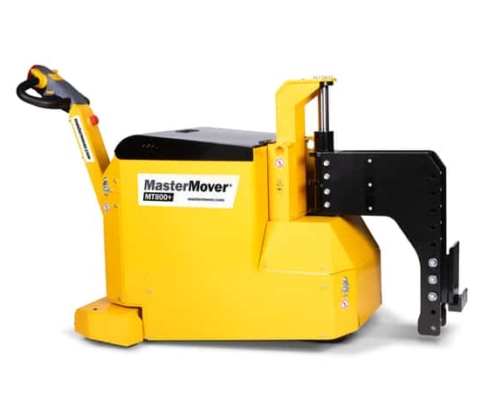

MasterTug MT800+ | Industrial Electric Tug
The MasterTug MT800+ is designed to allow a single pedestrian operator to easily push, pull and steer wheeled loads weighing up to a maximum of 17,600 lb. As part of the MasterTug range, the MT800+ features a Finite Element Analysis (FEA) tested steel chassis and a durable planetary gear box. All couplings are made from zinc coated steel for strength and the industrial drive wheel is long-lasting and provides the perfect amount of traction.
- Battery monitoring system
- FEA tested steel chassis
- Dual secured mast
- AC drive motor
- Self-adjusting castor guard
- Hydraulic weight transfer

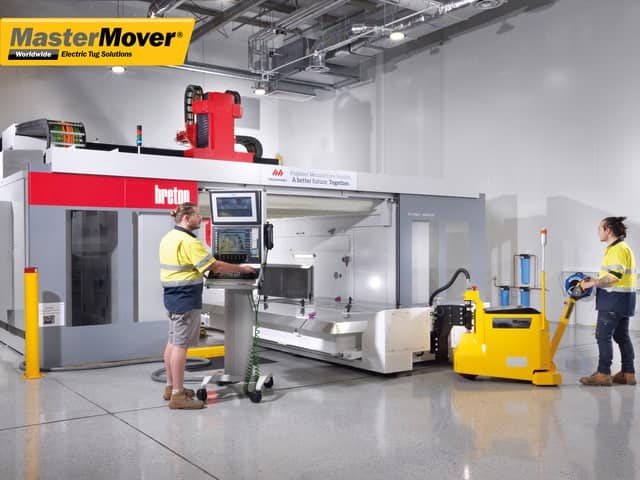

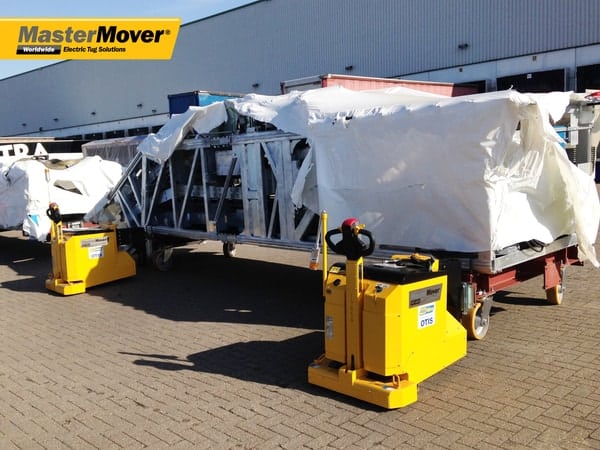

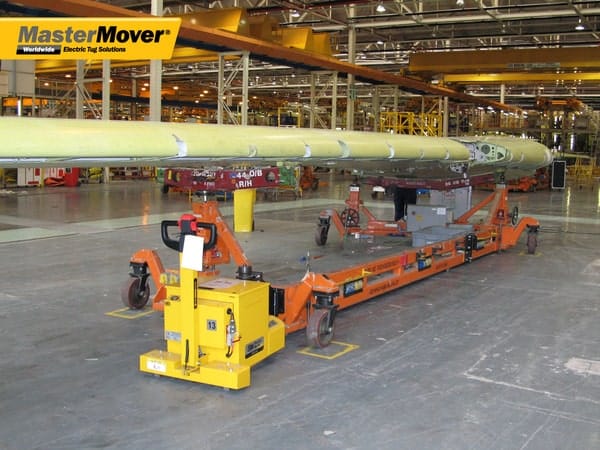

Application Gallery
Safety Features
Automatic cut off as tiller arm returns to vertical
 Anti-crush button
 Emergency stop button
 Warning horn
 Self-adjusting castor guard for foot protection
Options
Option – Flashing safety light and motion bleeper
 Option – Lithium battery
 Option – ATEX
 Variable speed selector
 Option – Battery protection system
 Option – Wireless control handset
Option – combi lock

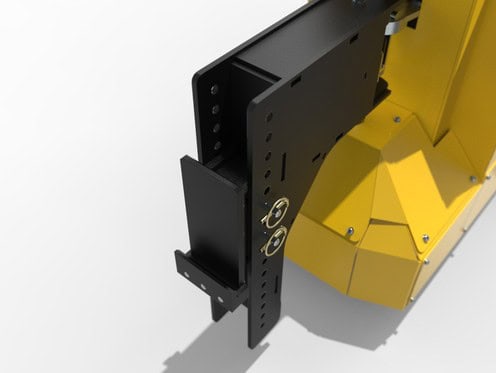

Option – quick release coupling pins
Couplings
Coupling – male – height adjustable combi – medium
Coupling – male – height adjustable box – medium
Coupling – female – combi – medium
Coupling – female – box – medium
Coupling – channel coupling body
Bespoke couplings available
Technical Data
Identification
| Product code | MT800+ |
| Recommended load weight – Castors | 18,000 lb |
| Recommended load weight – Rails | 71,000 lb |
| Machine weight including battery | 1,100 lb |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Polyurethane |
| Drive motor power | 2 kW |
| Controller type | AC |
| Variable machine speed | 0.1 mph – 3.1 mph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 179Ah 24V – interchangeable | Â |
Charging options
| Charger – internal – 20A 24V – 110V-240V | Â |
| Charger – external – 30A 24V – 110V-240V | Â |
Additional equipment
| Option – flashing safety light and motion bleeper | Â |
| Option – two speed selector switch | Â |
| Option – wireless control handset | Â |
| Option – lifting and anchoring points | Â |
| Option – battery protection system | Â |
Male coupling options
| Coupling – male – height adjustable combi – large | Â |
| Coupling – male – height adjustable box – large | Â |
| Coupling – channel coupling body | Â |
Female coupling options
| Coupling – female – combi – large | Â |
| Coupling – female – box – large |

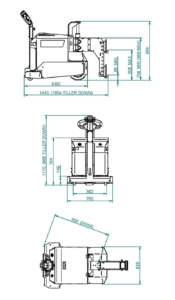

Dimensions
