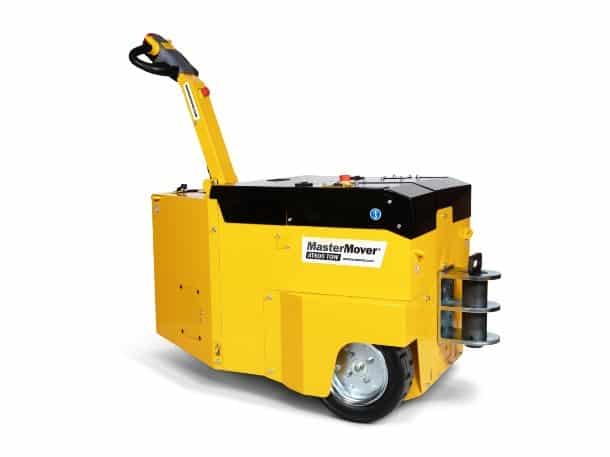

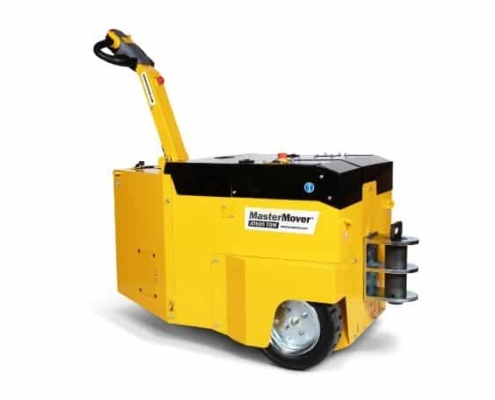

MasterTug® AT600 TOW
The All-Terrain AT600 TOW is a self-weighted unit and is the ideal electric tow for applications where weight transfer is not possible.
Attaching to any load up to 13,200 lb with a draw bar, towing eye or ball hitch fitting is easy thanks to the AT600 TOW’s coupling crawl function.
Controlled start acceleration gets the load moving safely and power steering provides effortless manoeuvrability, even on slopes and uneven surfaces.
With the addition of anti-slip, puncture-proof tires and automatic tiller cut off, the AT600 TOW maximises operator safety at all times and the interchangeable battery ensures the machine is available for use 24/7.
To see how the AT600 TOW can help improve your safety and efficiency, book a free on-site demonstration
Key Features
- Pull any load safely up to 13,200 lb
- Interchangeable battery for 24/7 operation
- Attach loads with a draw bar, towing eye or ball hitch
- Tiller arm release automatic braking system
- Internal weight packs for added stability
- Variable speed control
- Fully customisable and bespoke couplings
Application Gallery
Safety Features
Options
Couplings
Technical Data
Identification
| Product code | AT600 TOW |
Recommended load weight – Castors  |
6000 kg |
| Recommended load weight – Rails |
24,000 kg |
| Machine weight including battery | 600 kg |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Superelastic Solid Rubber |
| Drive motor power | 1.7 kW |
| Controller type | AC |
| Variable machine speed | 0-6kph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 119 Ah 24V – Interchangable | |
| Battery pack – sealed – 102 Ah 24V – Interchangable | |
| Battery pack – lithium – 118 Ah 24V – fixed |
Charging options
| Charger – external – 20A 24V – 85V-265V | |
| Charger – external – 15A 24V – 85V-265V | |
| Charger – internal – 15A 24V – 85V-265V | |
| Charger – lithium – external – 40A 24V – 265V |
Additional equipment
| flashing safety light and motion bleeper | |
| two speed selector switch | |
| fifth wheel | |
| battery protection system | |
| lithium battery | |

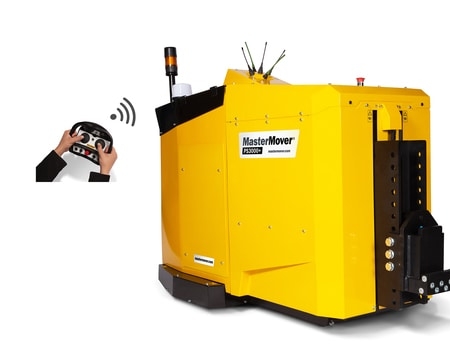

| Wireless control handset |
Male coupling options
| Coupling – male – pin | |
| Coupling – male – height adjustable tow ball – 50mm | |
| Coupling – male – height adjustable box | Fifthwheel only |
| Coupling – adjustable towing arm |
Female coupling options
| Coupling – female – box |

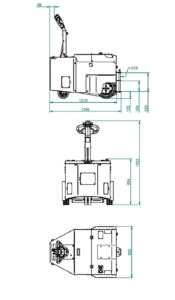

Dimensions
