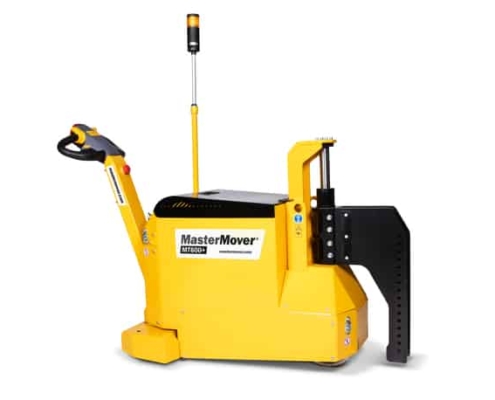

MasterTug® MT600+

MasterTug® MT600+

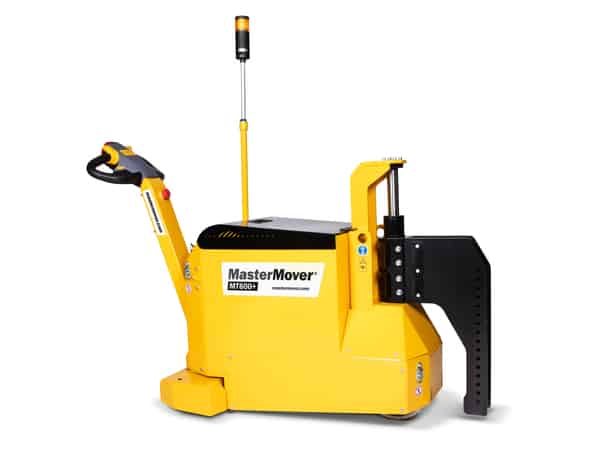

The MasterTug® MT600+ is a versatile electric tug, which utilises a hydraulic weight transfer system to provide even weight distribution and maximise safety when moving heavy loads.

A quick release pin or combi-lock, coupled with the hydraulic lifting mast allows the MT600+ to lift attached loads of up to 13,200 lb safely.

The optional wireless control handset for the MT600+ allows a single operator to maintain full visibility at all times, ensuring obstructions or hazards are easily avoided.

The automatic tiller cut off, self-adjusting castors and additional anchor points all maximises operator safety and the interchangeable battery ensures the machine is available for use 24/7.

To see how the MT600+ can help improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 13,200 lb
  • Interchangeable battery for 24/7 operation
  • Wireless control handset
  • Variable speed controls
  • Tiller arm release automatic braking system
  • Battery protection system

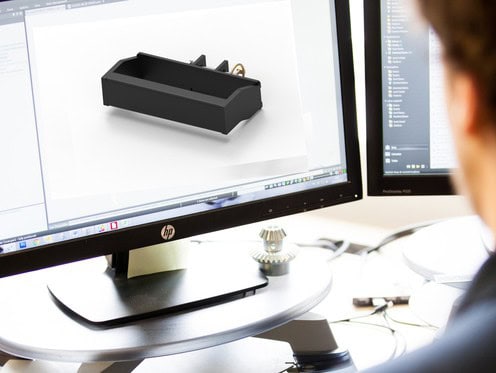

  • Fully customisable and bespoke couplings

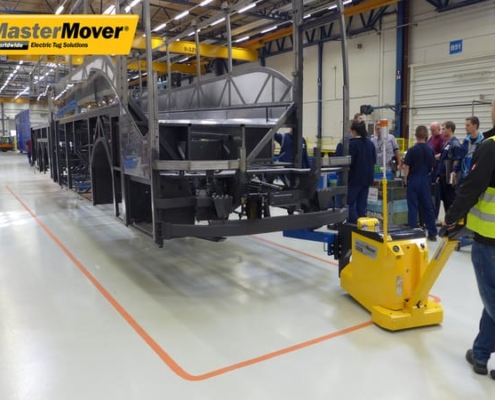

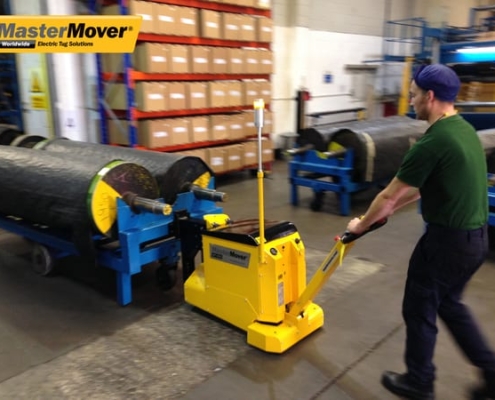

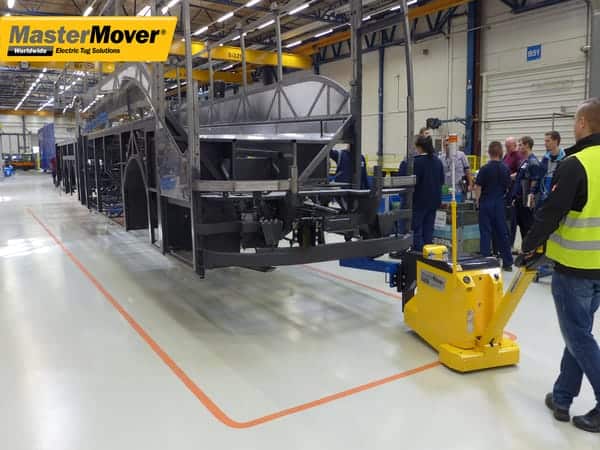

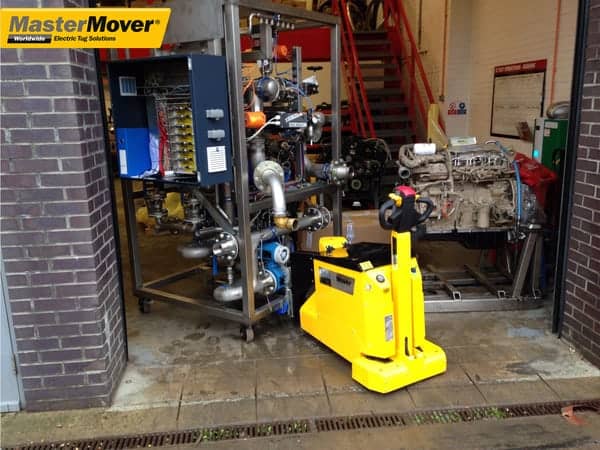

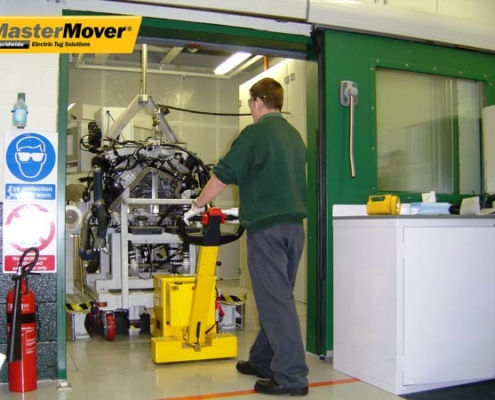

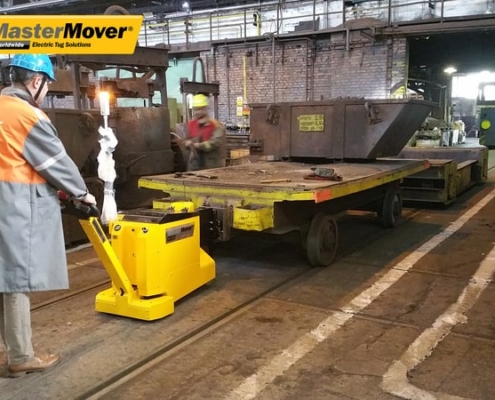

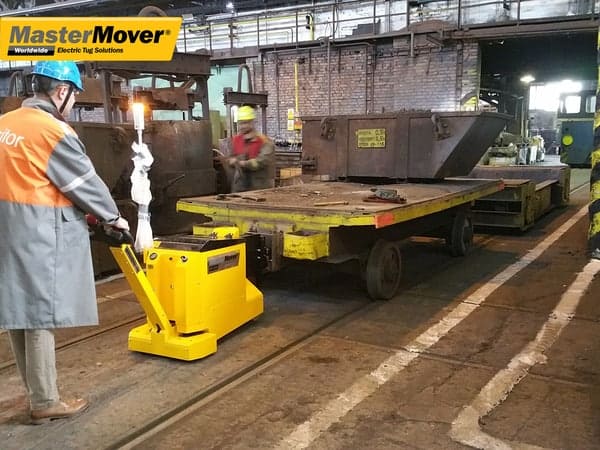

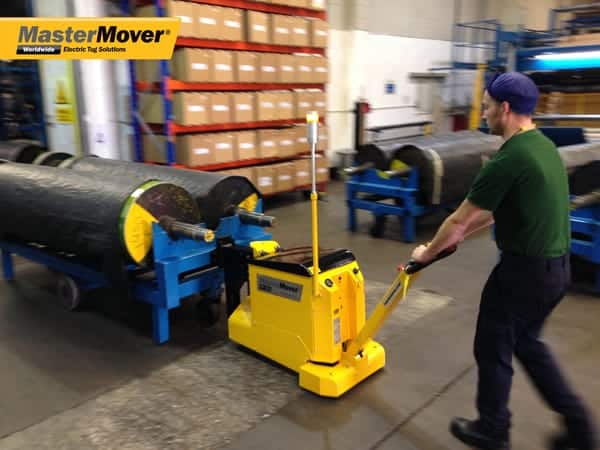

Application Gallery

Safety Features

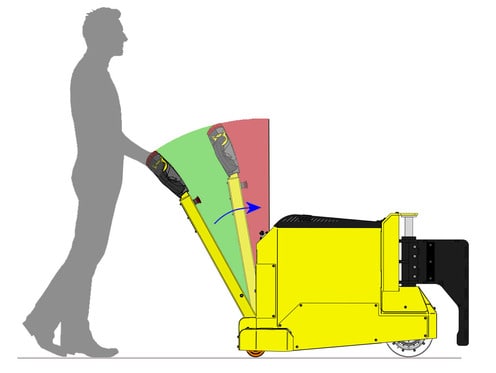

Automatic cut off as tiller arm returns to vertical

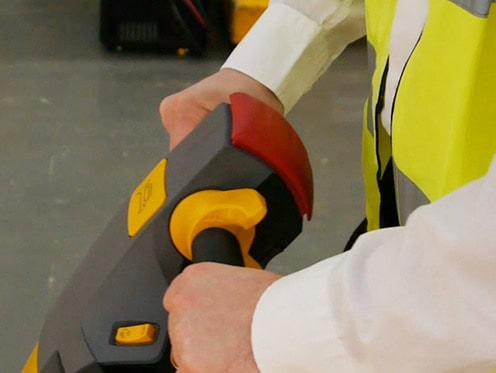

 Anti-crush button

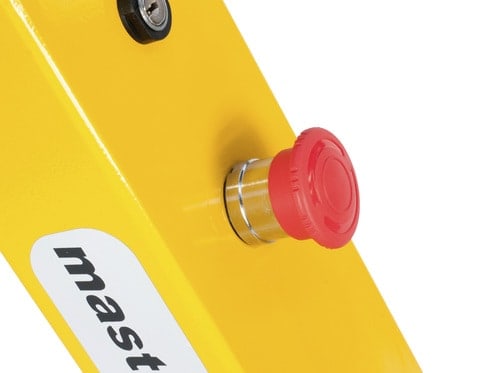

 Emergency stop button

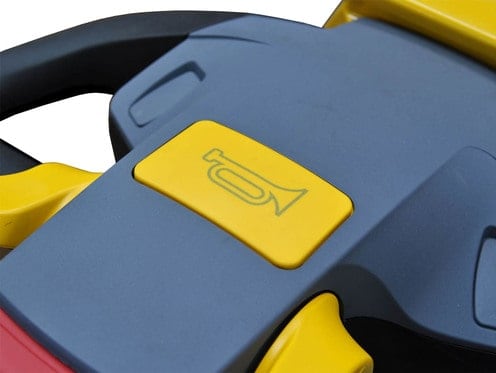

 Warning horn

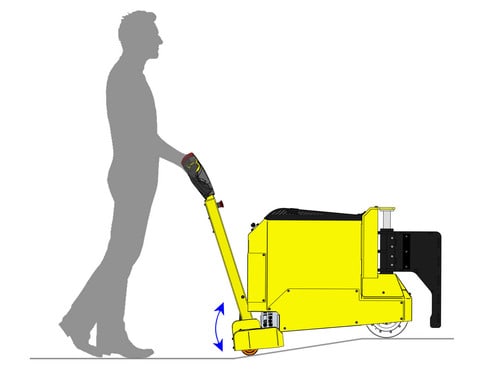

 Self-adjusting castor guard for foot protection
Options

flashing safety light and motion bleeper

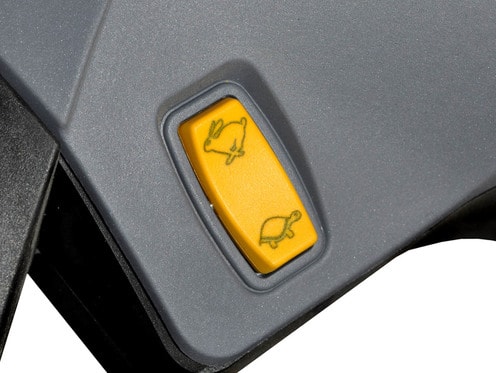

two speed selector switch

wireless control handset

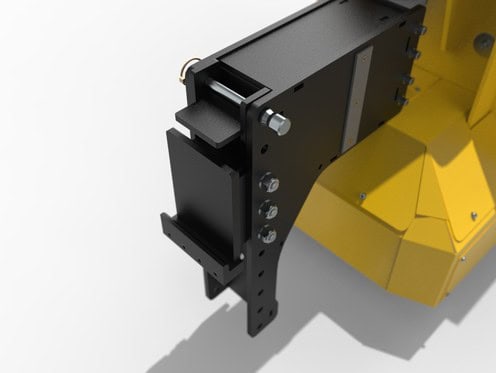

combi lock

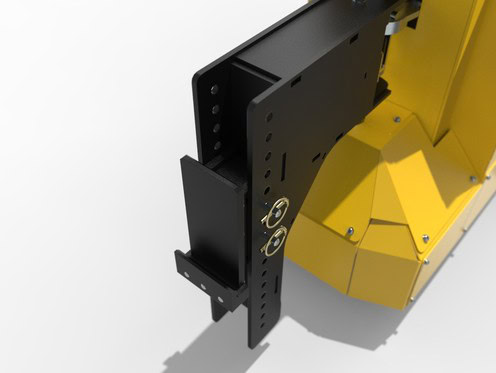

quick release coupling pins

battery protection system

Lithium battery

ATEX
Couplings

Flashing safety light and motion bleeper

 Lithium battery

 Fifth wheel

 Machine crawl coupling assist

 ATEX not available in the US

 Variable speed selector
Technical Data

Identification

Product code MT600+
Recommended load weight – Castors 13,000 lb
Recommended load weight – Rails 53,000 lb
Machine weight including battery 700 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 1.5 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph
Ingress Protection IP44

Battery options

Battery pack – sealed – 119Ah 24V – interchangeable
Battery pack- lithium – 118Ah 24V – fixed

Charging options

Charger – external – 10A 24V – 110V-240V
Charger – external – 20A 24V – 110V-240V

Additional equipment

flashing safety light and motion bleeper
two speed selector switch
wireless control handset
battery protection system

Male coupling options

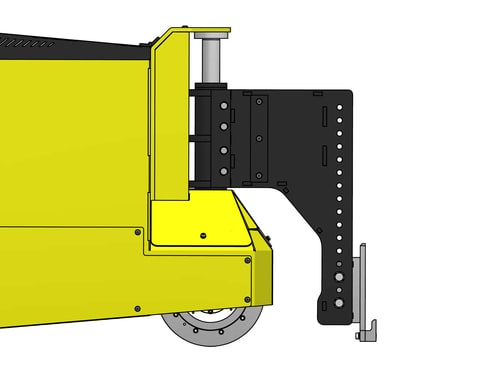

Coupling – male – height adjustable combi – medium
Coupling – male – height adjustable box – medium
Coupling – channel coupling body

Female coupling options

Coupling – female – combi – medium
Coupling – female – box – medium

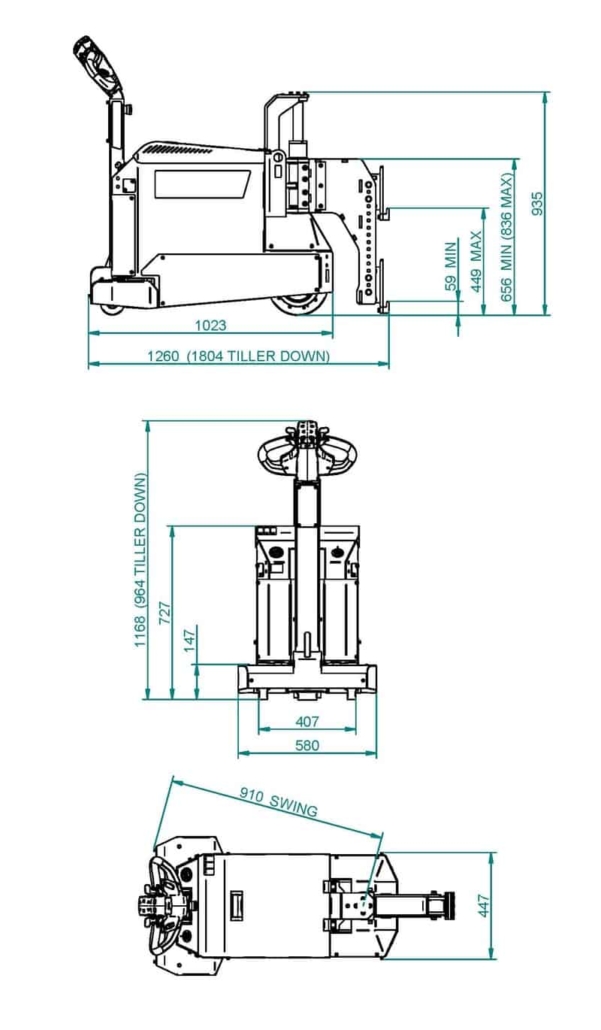

Dimensions
