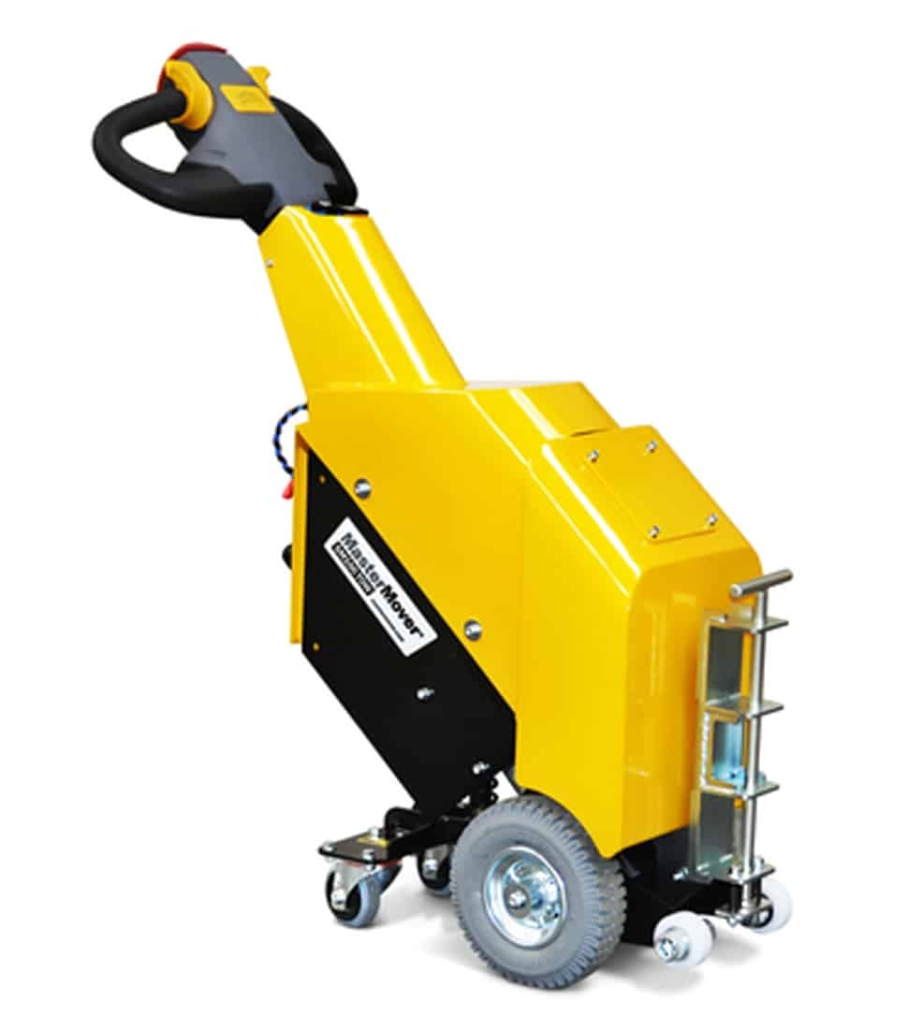

SmartMover® SM100 TOW

The SmartMover® SM100 TOW utilizes its two drive motors to generate the traction required to move loads up to 1,100 lbs.

As the SM100 TOW is a self-weighted unit, it is the ideal electric tow for applications where weight transfer is not possible and with the addition of anti-slip, puncture-proof tyres and supporting castors, operator safety is maintained at all times.

The interchangeable battery provides 24/7 operation and is perfectly suited for loads fitted with a draw bar or towing eye.

The SmartMover® SM100 TOW is a versatile and compact electric tugger, which can be fully customised and built to perform at its best in your workplace environment. Various couplings, additional safety features and machine options are available.

To see how the SM100 TOW can help you improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Pull any load safely up to 1,100 lbs
  • Interchangeable battery for 24/7 operation
  • Safely connect loads with draw bar or tow eye
  • Throttle release automatic braking system
  • Internal weight packs for added stability

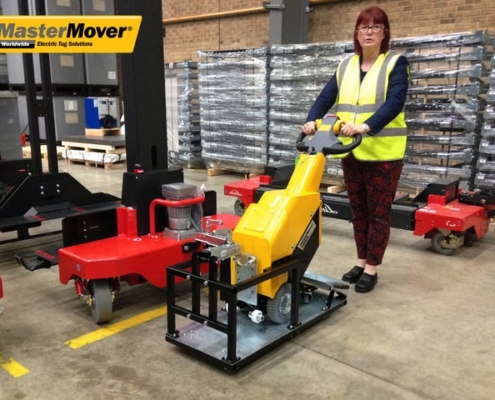

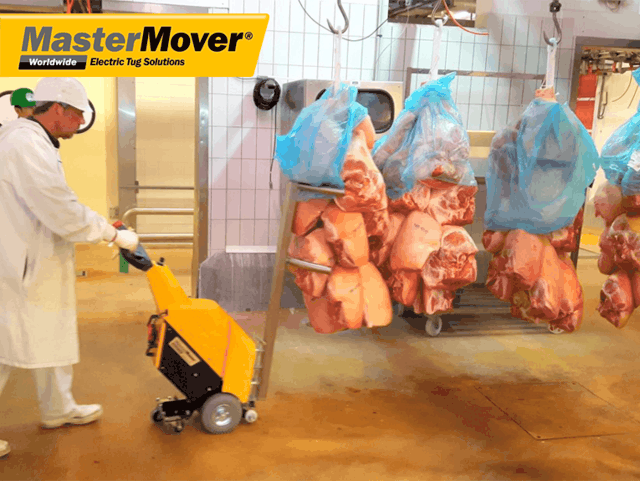

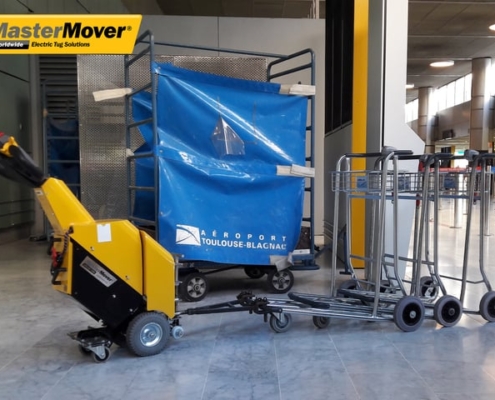

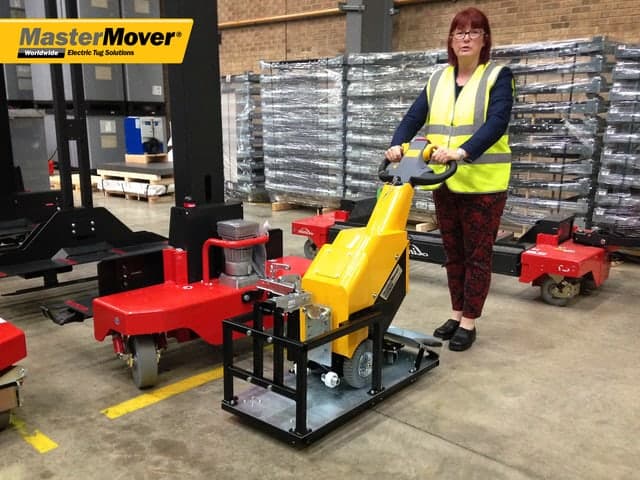

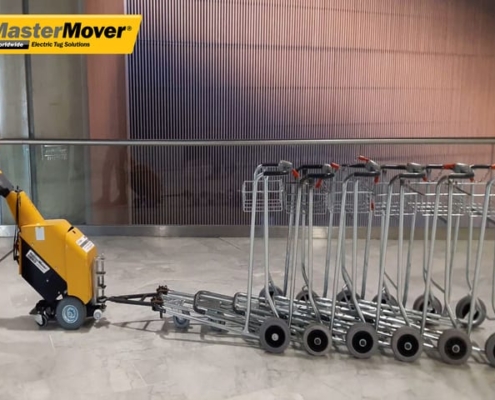

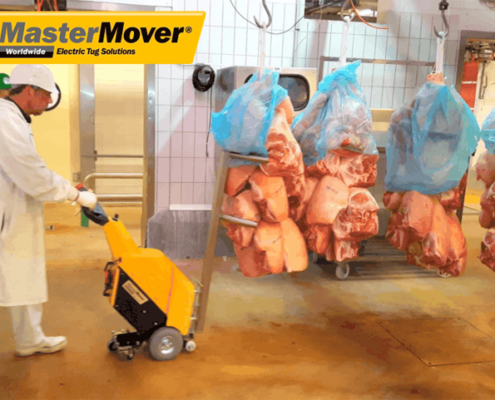

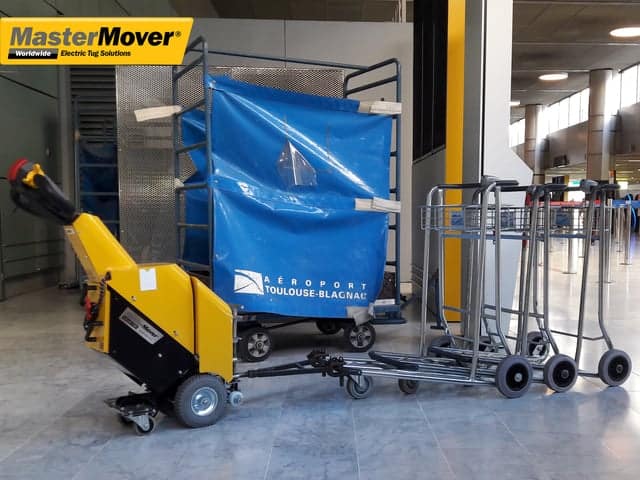

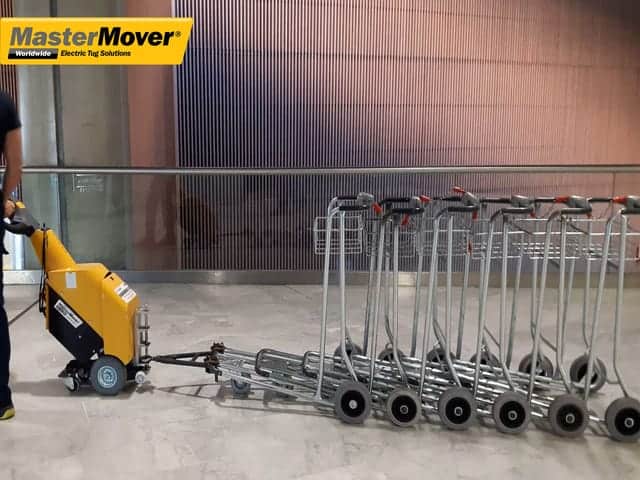

Application Gallery
Safety Features

Emergency stop and warning horn

Slow and fast speed selector for complete control

Automatic braking system when operator releases the throttle

Anti-slip and puncture-proof tyres
Options

Flashing safety light and motion bleeper

Interchangeable batteries

Lithium battery

Available in ATEX
Couplings

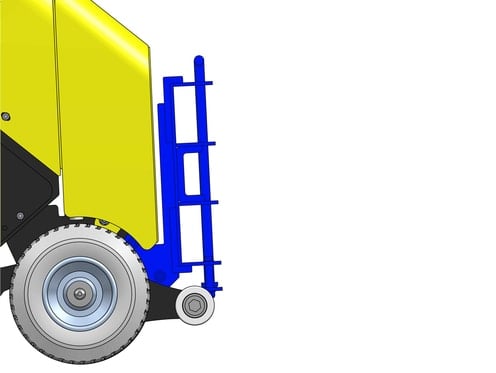

Tow pin 15mm

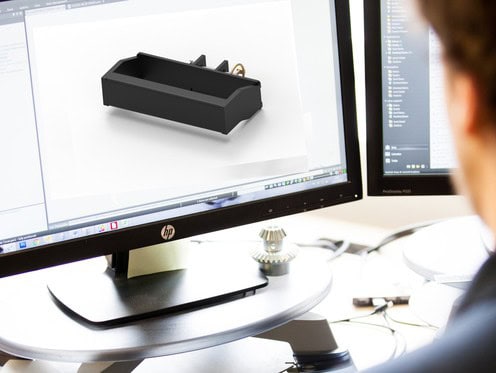

Bespoke couplings available
Technical Data

Identification

Product code SM100 TOW
Recommended max load 1,100 lb
Pull force 981 N
Push force 981 N
Chassis All steel powder coated
Machine weight including battery 300 lb
Variable machine speed 0.1 mph – 3.1 mph
Drive motor power 2 x 0.22 kW
Drive wheel type Puncture-proof, non-marking
Parking brake Electromagnetic
Ingress Protection IP42
Noise level ≤ 80 dBA
Operating temperature -15 to 40°C

Battery options

How long does the battery last 15.1 km
Recharging times 4 hr 30 mins
Charger External – 5A 24V – 85V-265V
Dimensions
