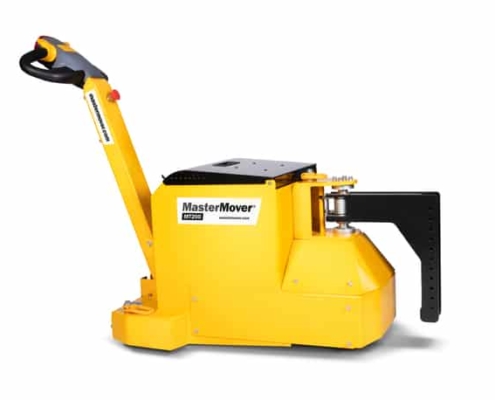

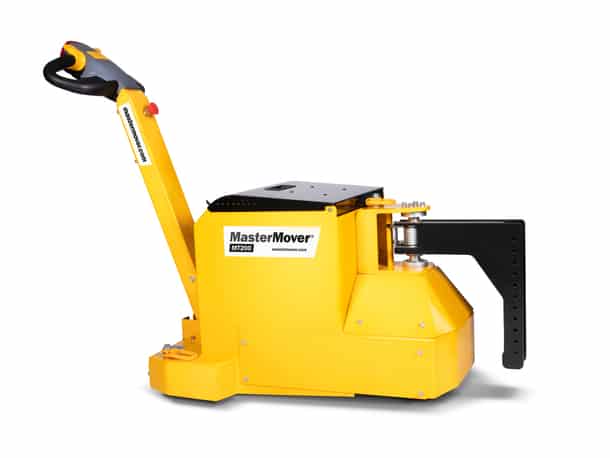

MasterTug® MT200
The MasterTug® MT200 is the smallest electric tug in the MasterTug® range and is designed to move loads weighing up to 4,400 lbs.
The internal weight packs provide maximum traction, allowing the high powered AC motor to work at maximum efficiency. Coupled with the variable speed button, the MT200 is the perfect electric tug for moving parts, stock or containers through various environments.
The automatic tiller cut off, self-adjusting castors and additional anchor points all maximises operator safety and the interchangeable battery ensures the machine is available for use 24/7.
To see how the MT200 can help you improve your safety and efficiency, book a free on-site demonstration
Key Features
- Push and Pull any load safely up to 4,400 lbs
- Interchangeable battery for 24/7 operation
- Tiller arm release automatic braking system
- Anti-crush button for operator safety
- Internal weight packs for added stability
- Variable speed controls
- Fully customisable and bespoke couplings

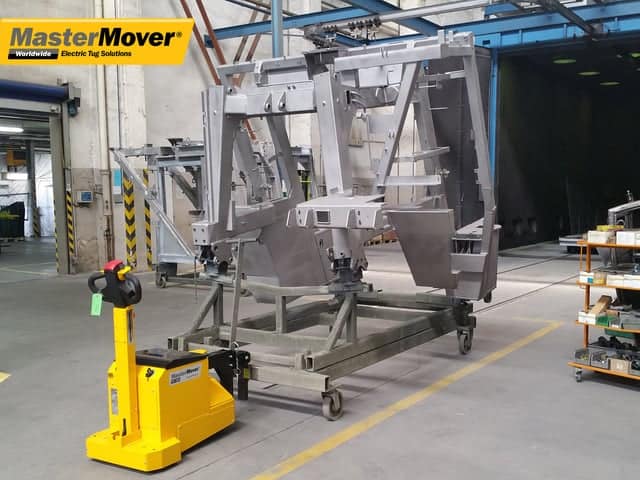

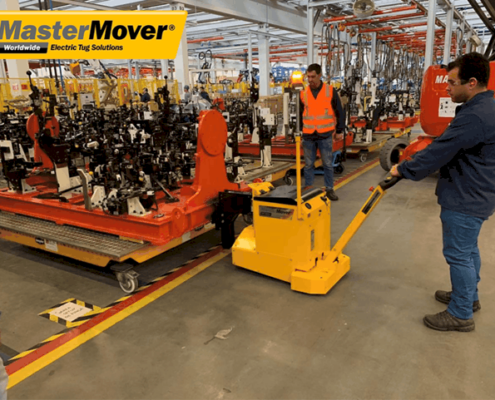

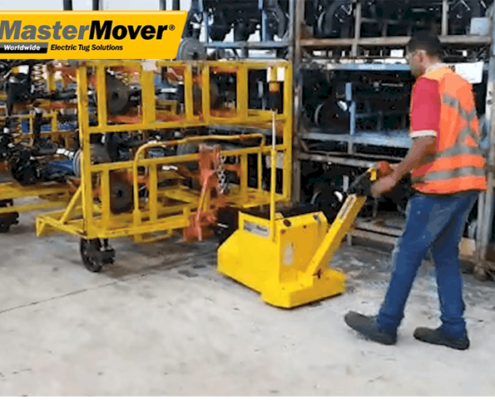

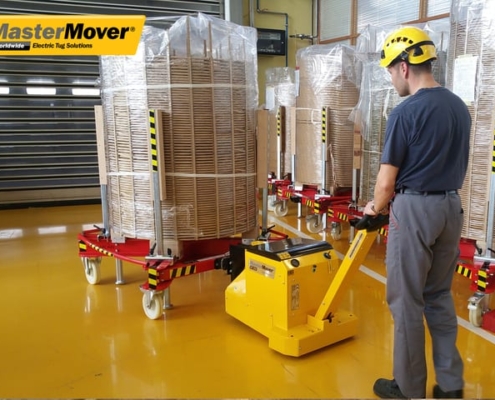

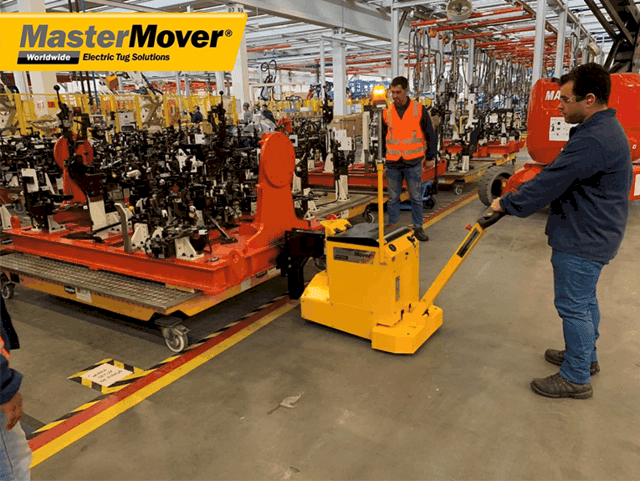

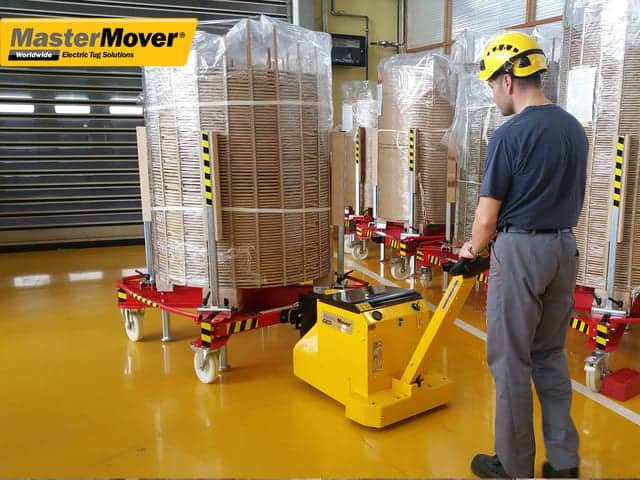

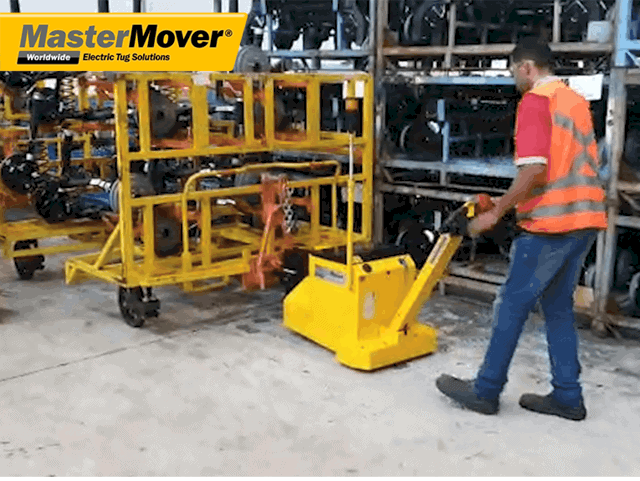

Application Gallery
Automatic cut off as tiller arm returns to vertical
Emergency stop and warning horn
Slow and fast speed selector for complete control
Automatic braking system when operator releases the throttle
Safety Features
Automatic cut off as tiller arm returns to vertical
Emergency stop and warning horn
Slow and fast speed selector for complete control
Automatic braking system when operator releases the throttle
Options
Flashing safety light and motion bleeper
Two speed selector switch
Battery protection system
Lithium battery
Available in ATEX
Couplings

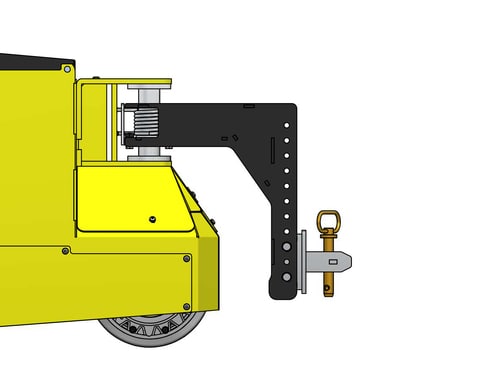

Coupling – male – height adjustable box

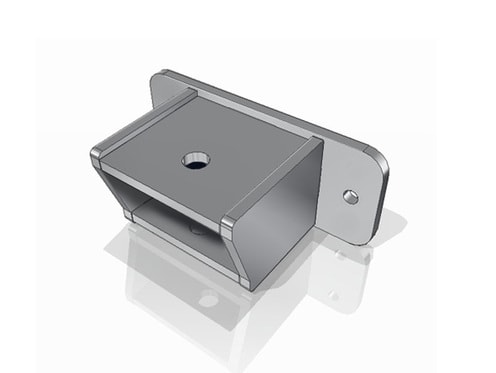

Coupling – female – box
Bespoke couplings available
Technical Data
Identification
| Product code | MT200 |
| Recommended load weight – Castors | 4,400 lbs |
| Recommended load weight – Rails | 17,600 lbs |
| Machine weight including battery | 500 lb |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Polyurethane |
| Drive motor power | 1.2 kW |
| Controller type | AC |
| Variable machine speed | 0.1 mph – 3.1 mph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 46Ah 24V – interchangeable |
Charging options
| Charger – internal – 12.5A 24V – 110V-240V | |
| Charger – external – 10A 24V – 110V-240V |
Mast options
| Mast – fixed |
Additional equipment
| Flashing safety light and motion bleeper | |
| Two speed selector switch | |
| Lifting and anchoring points | |
| Battery protection system |
Male coupling options
| Coupling – male – height adjustable box |
Female coupling options
| Coupling – female – box |

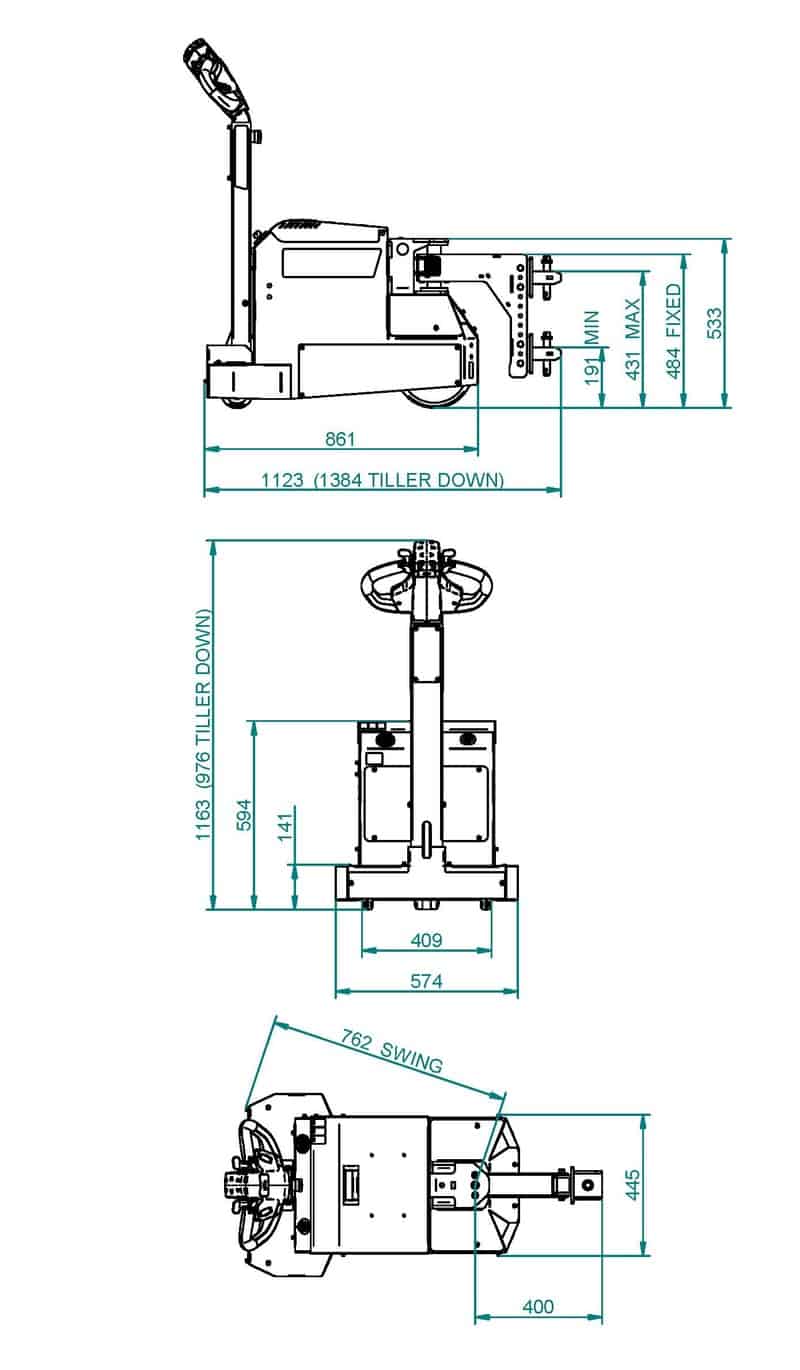

Dimensions
