MasterTug® MT400+

MasterTug® MT400+

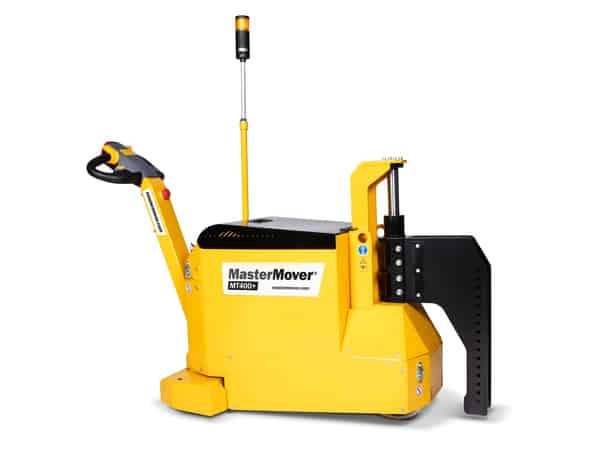

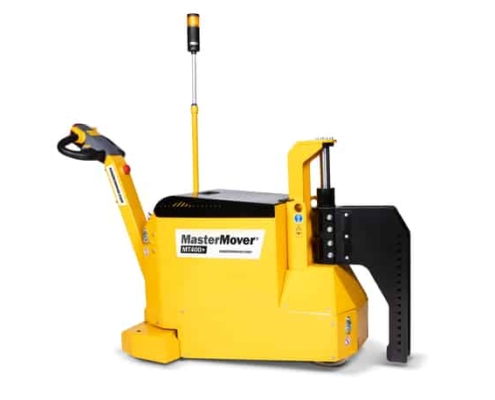

The MasterTug® MT400+ is a single person operated, simple and easy electric tugger which can be used across various applications.

A quick release pin or combi-lock, coupled with the hydraulic lifting mast and hydraulic weight transfer system, allows the MT400+ to lift attached loads of up to 8,800 lb safely.

The automatic tiller cut off, self-adjusting castors and additional anchor points all maximises operator safety and the interchangeable battery ensures the machine is available for use 24/7.

When moving large or oversized loads with the MT400+, the wireless control handset allows a single operator to maintain full visibility of the surrounding environment, ensuring obstructions or hazards are easily avoided.

To see how the MT400+ can help improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 8,800 lb
  • Interchangeable battery for 24/7 operation
  • Hydraulic Weight Transfer for even weight distribution
  • Variable speed controls
  • Tiller arm release automatic braking system
  • Fully customisable and bespoke couplings
  • Available in Stainless Steel

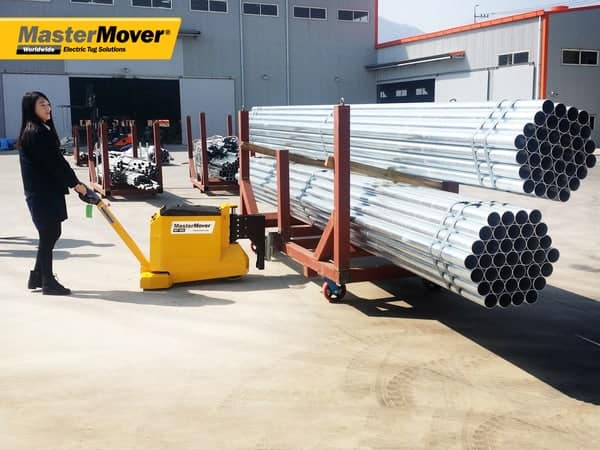

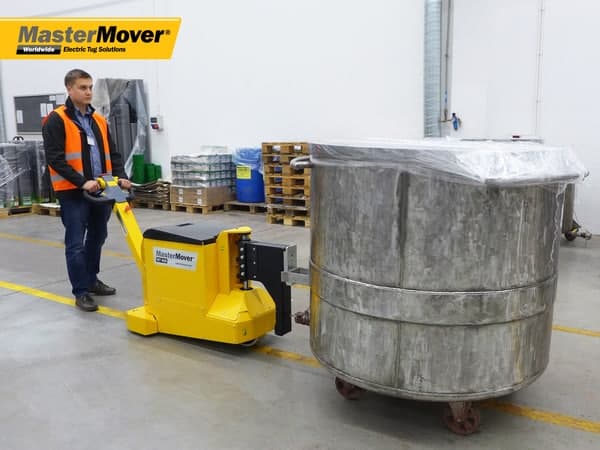

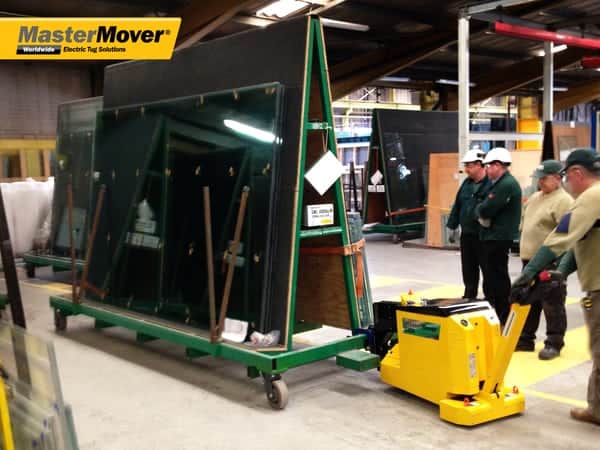

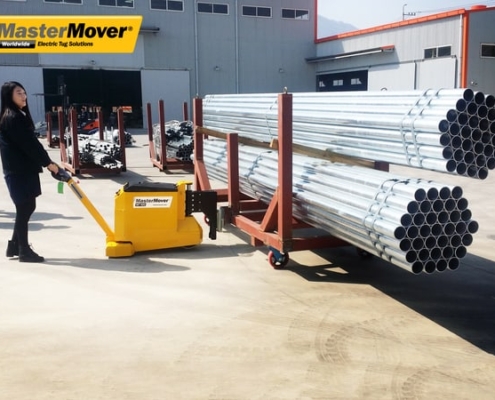

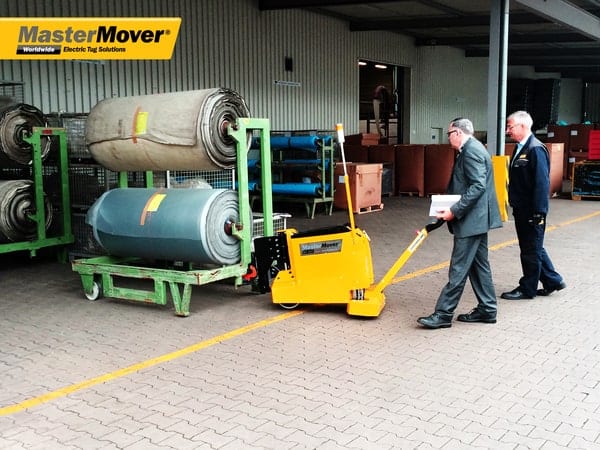

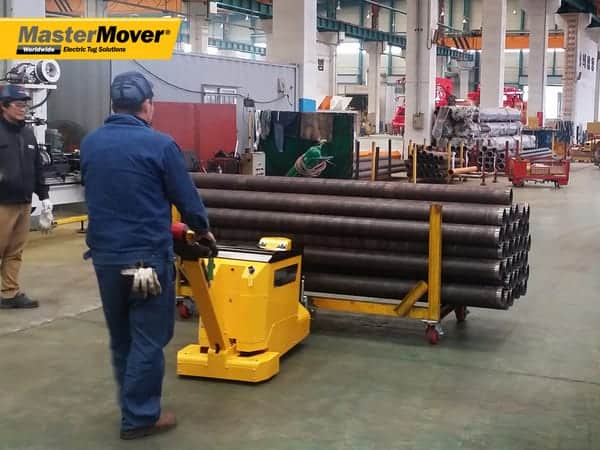

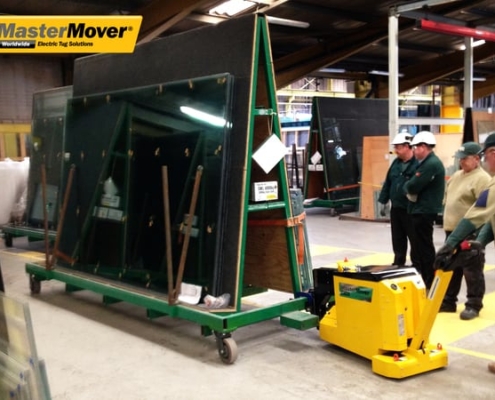

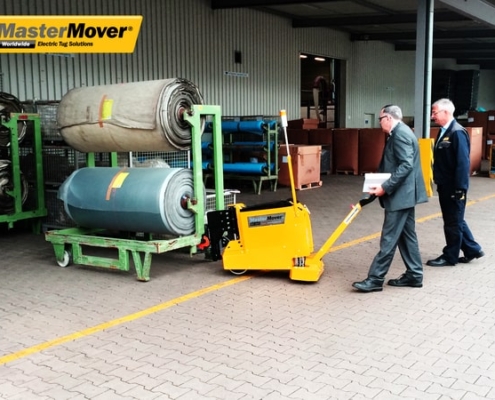

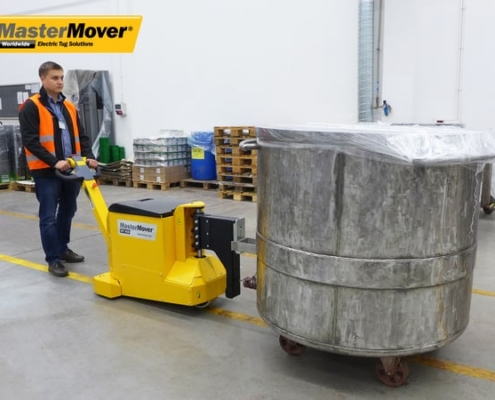

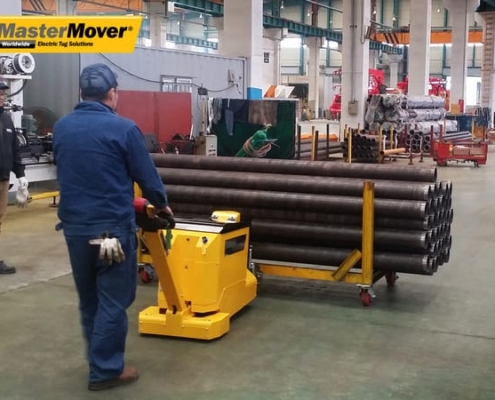

Application Gallery

Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn

 Self-adjusting castor guard for foot protection

Flashing safety light and motion bleeper

 Lithium battery

 Fifth wheel

 Machine crawl coupling assist

 ATEX not available in the US

 Variable speed selector

 Battery protection system

 Wireless control handset

 Steering mode switch

Flashing safety light and motion bleeper

 Lithium battery

 Fifth wheel

 Machine crawl coupling assist

 ATEX not available in the US

 Variable speed selector

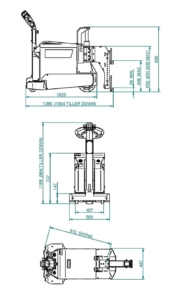

Technical Data


Product code MT400+
Recommended load weight – Castors 8,800 lb
Recommended load weight – Rails 35,000 lb
Machine weight including battery 700 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 1.5 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph
Ingress Protection IP44

Battery options

Battery pack – sealed – 102Ah 24V – interchangeable
Battery pack – sealed – 119Ah 24V – interchangeable

Charging options

Charger – external – 10A 24V – 110V-240V
Charger – external – 20A 24V – 110V-240V

Additional equipment

flashing safety light and motion bleeper
two speed selector switch
wireless control handset
Battery protection system
quick release coupling pins

Male coupling options

Coupling – male – height adjustable combi – medium
Coupling – male – height adjustable box – medium
Coupling – channel coupling body

Female coupling options

Coupling – female – combi – medium
Coupling – female – box – medium
