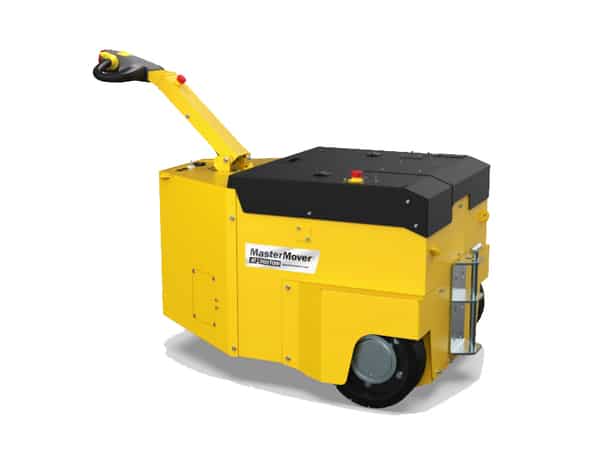

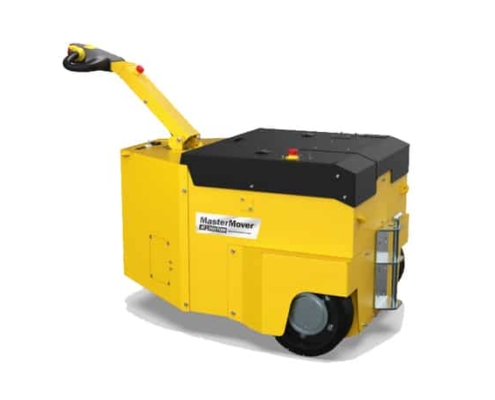

AT1000 TOW | Electric Tow Tugger
The AT1000 TOW electric tug is perfect for safely towing loads where weight transfer is not possible, up to 22,000 lb. The tug is self-weighted and compact, providing excellent traction for effortless load towing whilst attaching to any load with a draw bar, towing eye or ball hitch fitting. It can be used inside or outside, including on slopes and less than perfect surfaces.
- FEA tested steel chassis
- Internal weight packs
- Optimised size, puncture-proof wheels

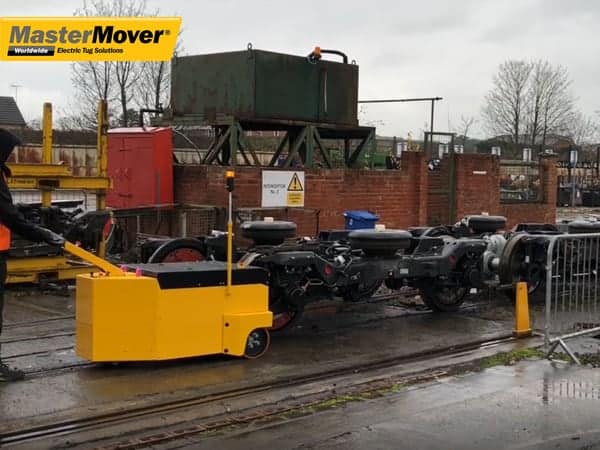

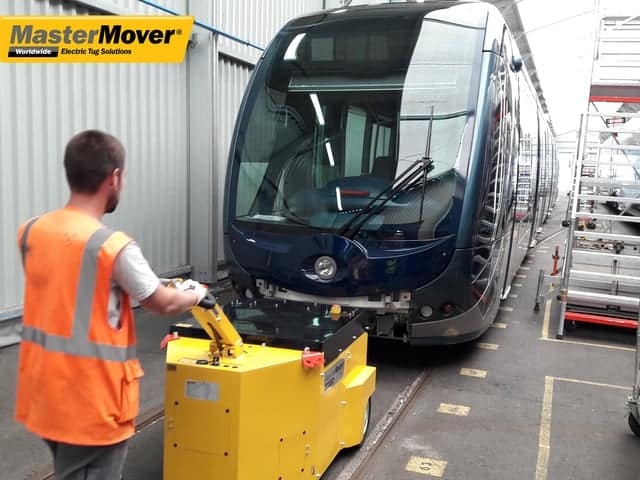

Application Gallery
Safety Features
Automatic cut off as tiller arm returns to vertical
 Anti-crush button
 Emergency stop button
 Warning horn
 Machine crawl coupling assist
Options

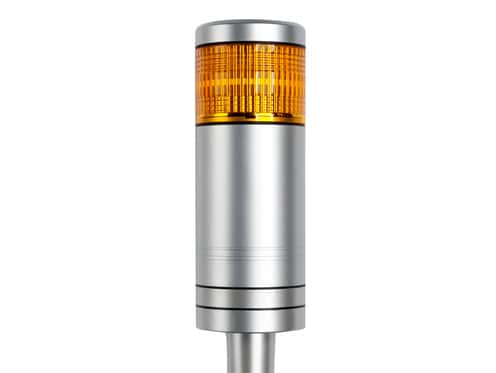

Flashing safety light and motion bleeper
 Lithium battery
 Fifth wheel
ATEX not available in the US
two speed selector switch
 Battery protection system

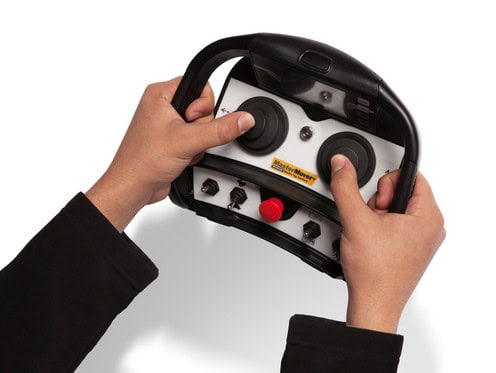

Wireless control handset
Couplings

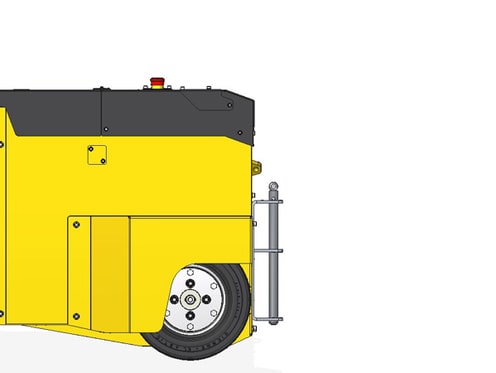

 Coupling – male – pin

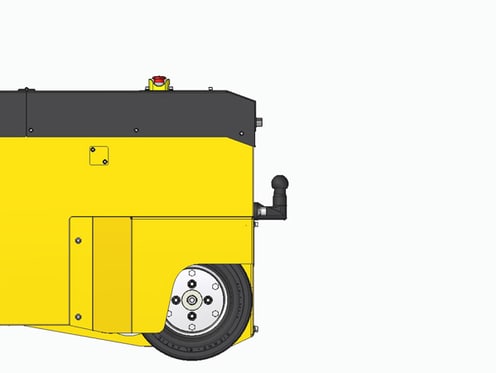

 Coupling – male – height adjustable tow ball – 50mm

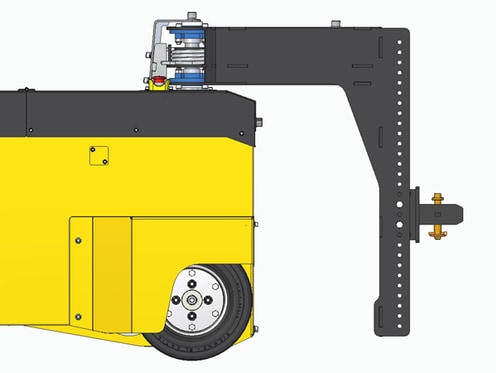

 Coupling – male – height adjustable box

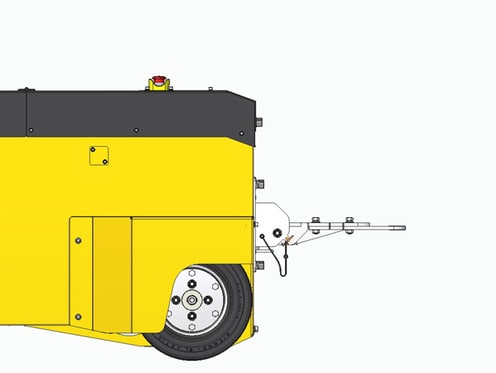

 Coupling – adjustable towing arm
 Machine crawl coupling assist
 Variable speed selector
Technical Data
Identification
| Product code | AT1000 TOW |
| Recommended load weight – Castors | 22,000 lb |
| Recommended load weight – Rails | 40000 kg |
| Machine weight including battery | 1350 kg |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Superelastic Solid Rubber |
| Drive motor power (electric steered option) | 2 x 2.0 kW |
| Controller type | AC |
| Variable machine speed | 0-3.7 mph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 204Ah 24V – Interchangeable | Â |
| Battery pack – sealed – 179 Ah 24V – Interchangable | Â |
| Battery pack – lithium – 118 Ah 24V – fixed | Â |
Charging options
| Charger – external – 30A 24V – 85V-265V | Â |
| Charger – internal – 20A 24V – 85V-265V | Â |
| Charger – lithium – external – 40A 24V – 85V-265V | Â |
Additional equipment
| Option – flashing safety light and motion bleeper | Â |
| Option – two speed selector switch | Â |
| Option – fifth wheel | Â |
| Option – battery protection system | Â |
| Option – Lithium battery | Â |
| Option- Wireless handset controller | Â |
Male coupling options
| Coupling – male – pin | Â |
| Coupling – male – height adjustable tow ball – 50mm | Â |
| Coupling – male – height adjustable box | Fifthwheel only |
| Coupling – male – adjustable towing arm | Â |
Female coupling options
| Coupling – female – box |

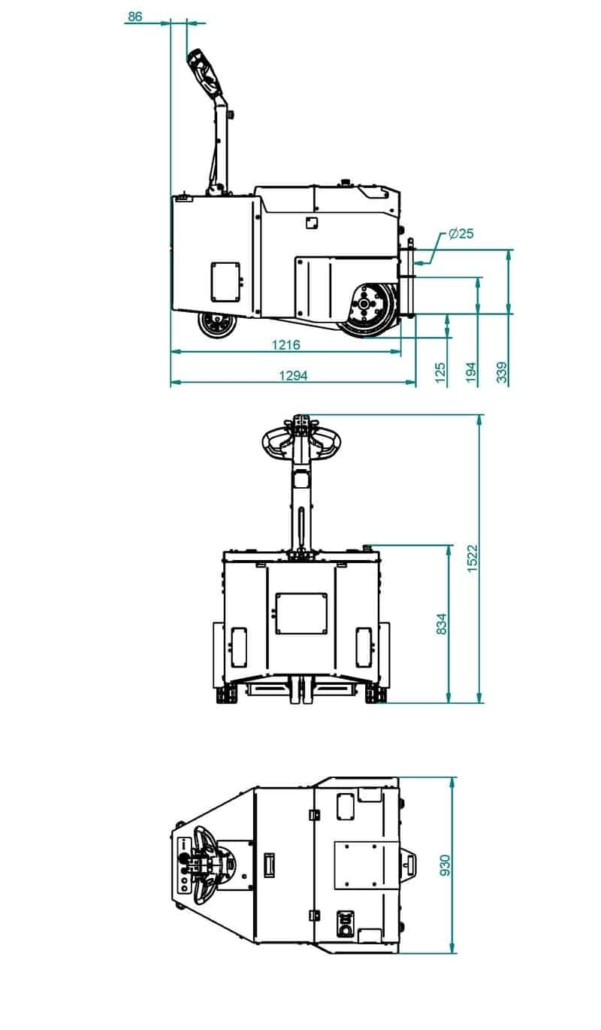

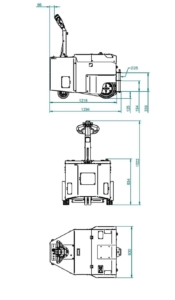

Dimensions
