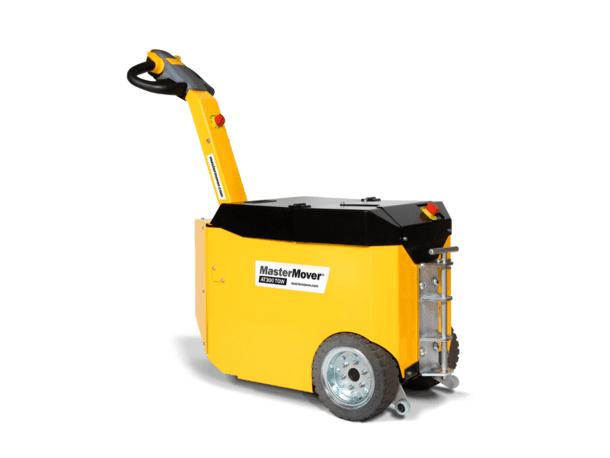

New AT300 TOW

The New AT300 TOW is simple and easy to use offering towing capabilities of up to 6,600 lb. A single operator can safely maneuver and connect securely to any load in seconds without the need for an operator license.

Ergonomically designed, the AT300 TOW improves both safety and efficiency across a number of working environments and terrains.

With the addition of anti-slip, puncture-proof tires and automatic tiller cut off, the AT300 TOW maximizes operator safety at all times and the interchangeable battery ensures the machine is available for use 24/7.

The AT300’s optional switchable steering mode allows a single operator to change from a fixed steering position; which can be used for maneuvering larger, heavier loads, to direct steering, giving full control and maneuverability via the tiller arm to move connected loads through space restricted areas.

Attaching to any load up to 6,600 lb with a draw bar, towing eye or ball hitch fitting is easy thanks to the AT300 TOW’s coupling crawl function. This allows the operator to move the machine slowly and connect simultaneously.

To see how the new and improved AT300 TOW can help improve your safety and efficiency, why not get in touch for more information or for a quotation.

Key Features

  • Pull any load safely up to 6,600 lbs
  • Interchangeable battery for 24/7 operation
  • Attach loads with a draw bar, towing eye or ball hitch
  • Tiller arm release automatic braking system
  • Switchable steering mode
  • Variable speed control
  • Fully customisable and bespoke couplings

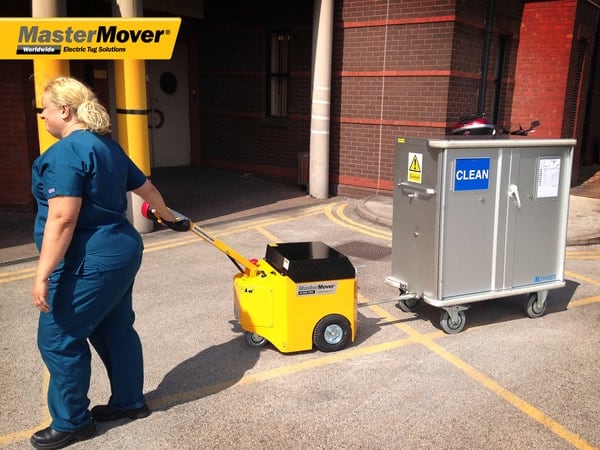

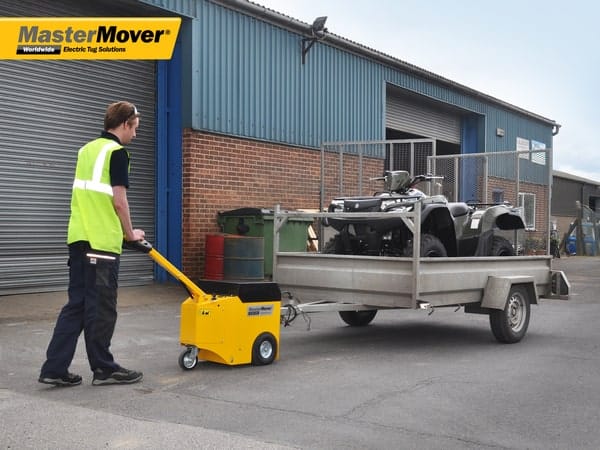

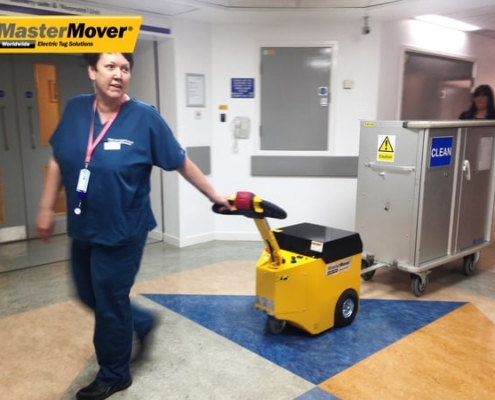

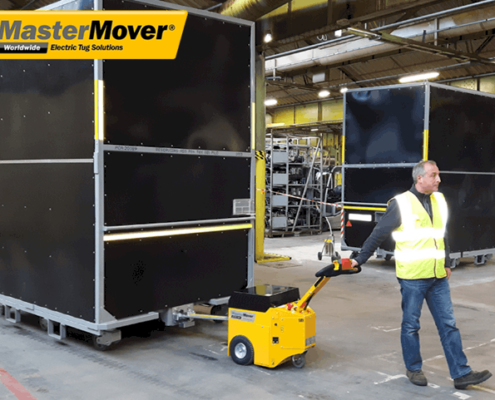

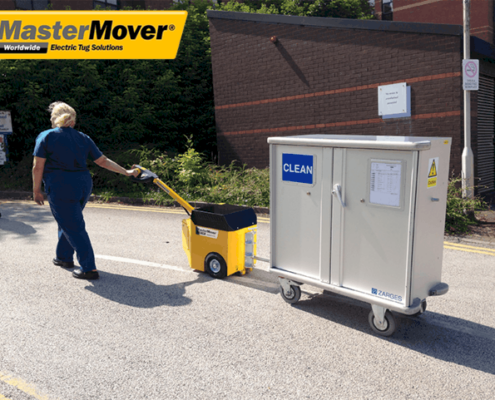

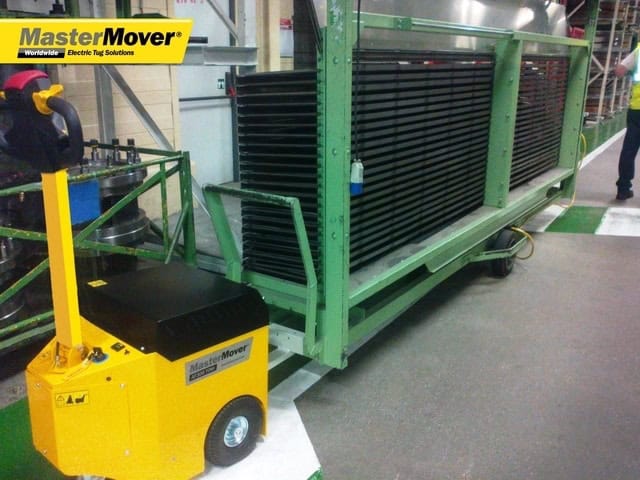

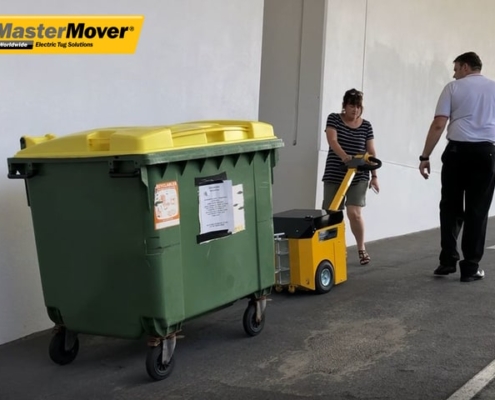

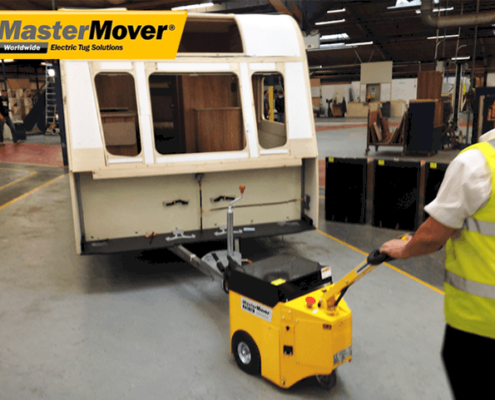

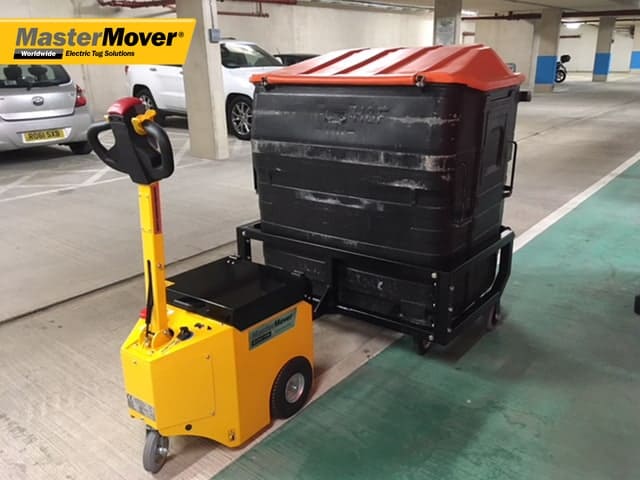

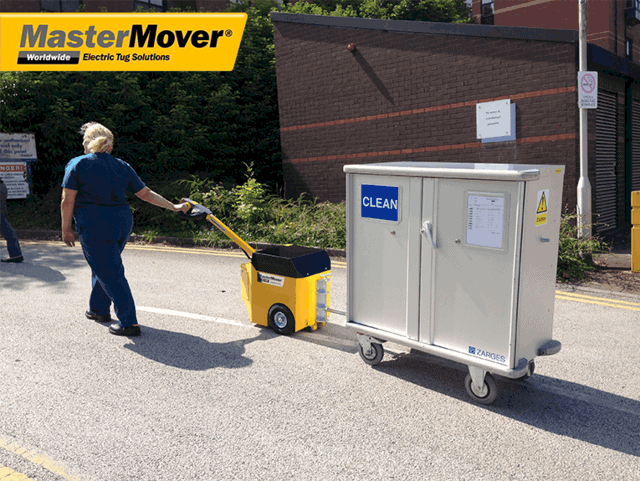

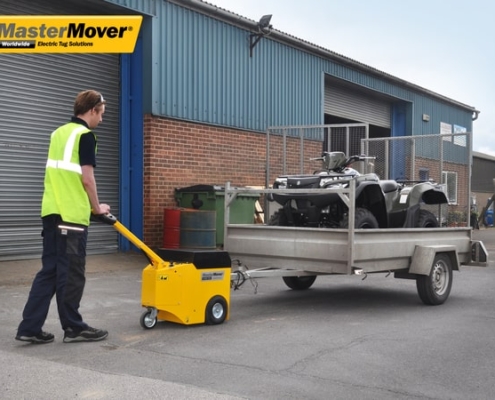

Application Gallery

Safety Features

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn

 Integrated Lift Point
Options

Flashing safety light and motion bleeper

 Lithium battery

 Fifth wheel

 Machine crawl coupling assist

 ATEX not available in the US

 Variable speed selector

 Battery protection system

 Wireless control handset

 Steering mode switch
Couplings

Coupling – male – pin

Coupling – male – height adjustable tow ball – 50mm

Coupling – male – adjustable towing arm

Coupling – male – height adjustable box – small – horizontal

Coupling – female – box

Bespoke couplings available
Technical Data

Identification

Product code AT300 TOW
Recommended load weight – Castors 6,600 lbs
Recommended load weight – Rails 26,500 lbs
Machine weight including battery 900 lb
Drive type Electric
Parking brake Electromagnetic
Drive wheel type Non Marking Rubber
Drive motor power 0.8 kW
Controller type DC
Variable machine speed 0.1 km/h – 5 km/h
Ingress Protection IP44
Maximum Push Force (N) 1,765
Maximum Pull Force (N) 2,217

Battery options

Battery pack – sealed – interchangeable 73Ah 24V
Battery pack – lithium – fixed 79Ah 24V

Charging options

Charger – external 15A 24V – 85V-265V
Charger – lithium – external 40A 24V – 85V-265V
Charger – Internal 15A 24V – 85V-265V

Additional equipment

Flashing safety light and motion bleeper
Lithium battery
Machine crawl coupling assist
Fifth wheel
Variable speed selector
Battery protection system
Wireless control handset
Steering mode switch

Male coupling options

Coupling – male – pin
Coupling – male – height adjustable tow ball – 50mm
Coupling – male – adjustable towing arm
Coupling – male – height adjustable box – small – horizontal

Female coupling options

Coupling – female – box
Dimensions
