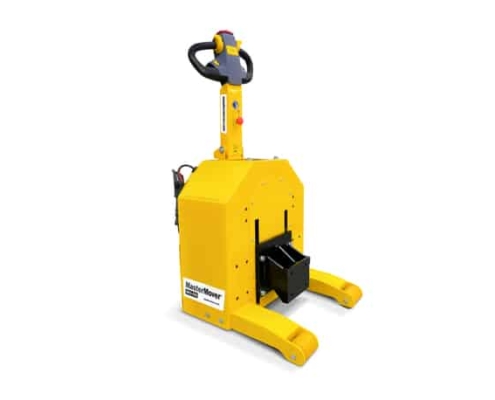

MasterHandler® MH400+

MasterHandler® MH400+

Category:

The MasterHandler® MH400+ is a multi-directional capable of moving loads where space is limited, thanks to its minimal turning radius.

The low profile of the MH400+ allows it to keep the travelling loads of up to 8,800 lb straight and stop uncontrolled sideways movement. The hydraulic coupling creates an unbreakable connection between the electric tug and attached load, giving total peace-of-mind and complete control.

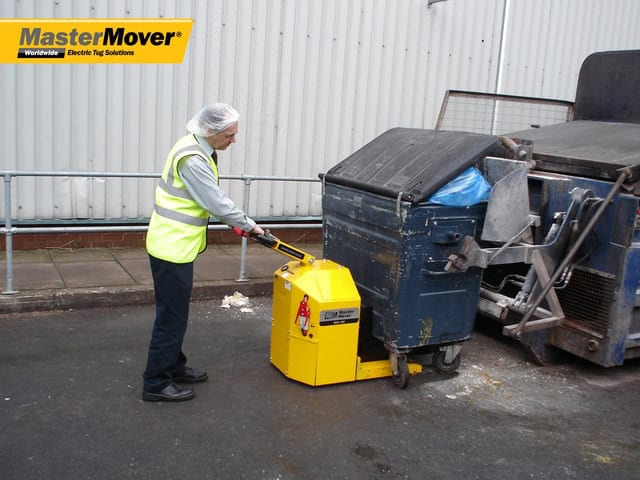

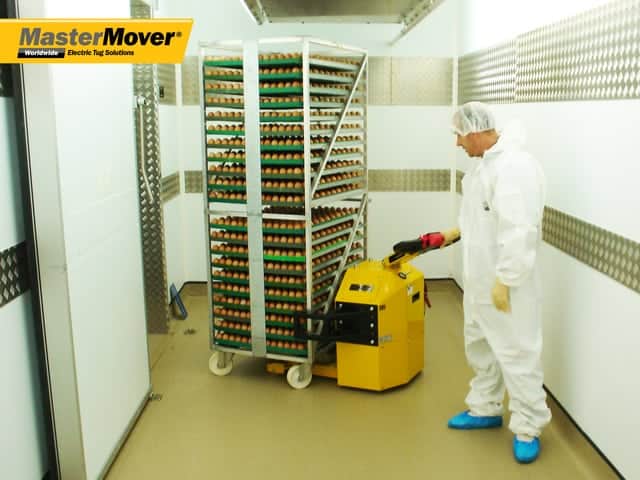

The variable speed button allows for the efficient movement of parts, stock or containers through various environments, whilst the tiller arm automatic cut-off and anti-crush buttons keep the operator safe at all times.

To see how the MH400+ can help improve your safety and efficiency, book a free on-site demonstration

Key Features

  • Push and Pull any load safely up to 8,800 lb
  • Safe & secure hydraulic coupling
  • Variable speed controls
  • Raises fixed front wheel loads
  • Tiller arm release automatic braking system
  • Fully customisable and bespoke couplings
  • Available in Stainless Steel

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

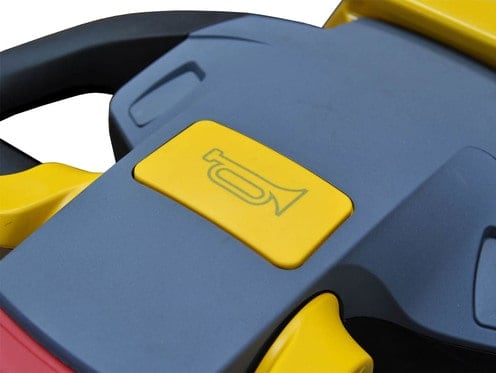

 Warning horn

two speed selector switch

 Lifting eyes

 flashing safety light and motion bleeper

Bespoke couplings available

Identification

Product code MH400+
Recommended load weight – Castors 8,800 lb
Recommended load weight – Rails 35,000 lb
Machine weight including battery 500 lb
Drive type Electric AC
Parking brake Electromagnetic
Drive wheel type Polyurethane
Drive motor power 2 kW
Controller type AC
Variable machine speed 0.1 mph – 3.1 mph

Charging options

Charger – external – 15A 24V – 110V-240V
Charger – external – 10A 24V – 110V-240V

Additional equipment

lifting and anchoring points
flashing safety light and motion bleeper
two speed selector switch

Automatic cut off as tiller arm returns to vertical

 Anti-crush button

 Emergency stop button

 Warning horn

 Integrated Lift Point

Flashing safety light and motion bleeper

 Lithium battery

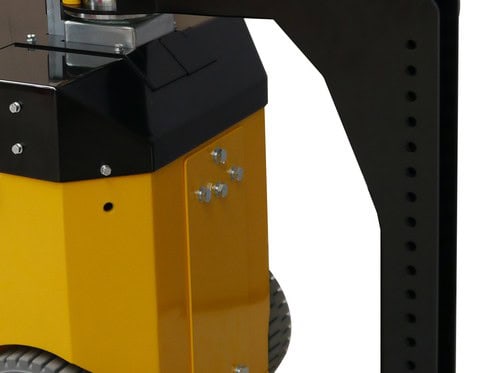

 Fifth wheel

 Machine crawl coupling assist

 ATEX not available in the US

 Variable speed selector

 Battery protection system

 Wireless control handset

 Steering mode switch

Coupling – male – pin

Coupling – male – height adjustable tow ball – 50mm

Coupling – male – adjustable towing arm

Coupling – male – height adjustable box – small – horizontal

Coupling – female – box

Bespoke couplings available

Identification

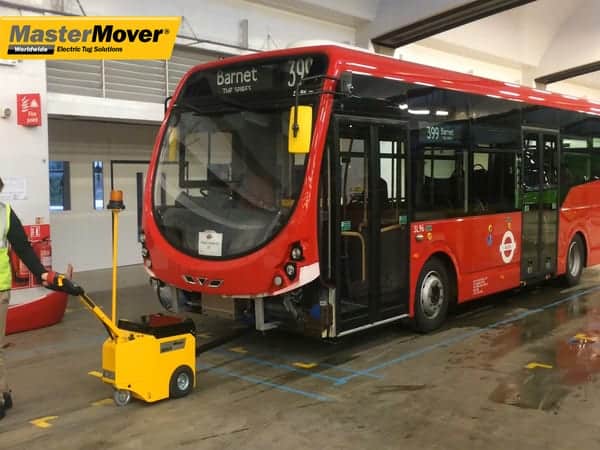

Product code AT300 TOW
Recommended load weight – Castors 6,600 lbs
Recommended load weight – Rails 26,500 lbs
Machine weight including battery 900 lb
Drive type Electric
Parking brake Electromagnetic
Drive wheel type Non Marking Rubber
Drive motor power 0.8 kW
Controller type DC
Variable machine speed 0.1 km/h – 5 km/h
Ingress Protection IP44
Maximum Push Force (N) 1,765
Maximum Pull Force (N) 2,217

Battery options

Battery pack – sealed – interchangeable 73Ah 24V
Battery pack – lithium – fixed 79Ah 24V

Charging options

Charger – external 15A 24V – 85V-265V
Charger – lithium – external 40A 24V – 85V-265V
Charger – Internal 15A 24V – 85V-265V

Additional equipment

Flashing safety light and motion bleeper
Lithium battery
Machine crawl coupling assist
Fifth wheel
Variable speed selector
Battery protection system
Wireless control handset
Steering mode switch

Male coupling options

Coupling – male – pin
Coupling – male – height adjustable tow ball – 50mm
Coupling – male – adjustable towing arm
Coupling – male – height adjustable box – small – horizontal

Female coupling options

Coupling – female – box
