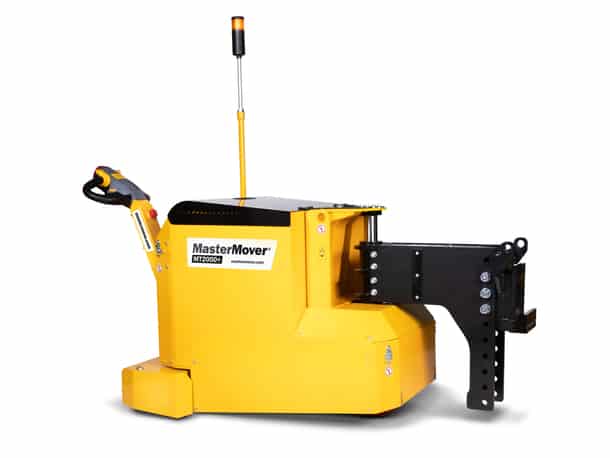

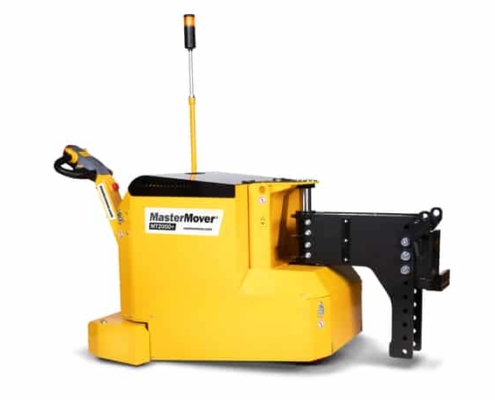

MasterTug MT2000+ | Single Person Operated Electric Tug
The MasterTug MT2000+ is designed to allow a single pedestrian operator to easily push, pull and steer wheeled loads weighing up to a maximum of 44,000 lb. As part of the MasterTug range, the electric tugger features a castor guard that self-levels to prevent foot trap risks as the back of the tug raises under load. An automatic braking system is a safety feature that stops machine and load if the operator releases the controls or as the tiller arm returns to vertical.
- Battery monitoring system
- FEA tested steel chassis
- Dual secured mast
- AC drive motor
- Self-adjusting castor guard
- Hydraulic weight transfer

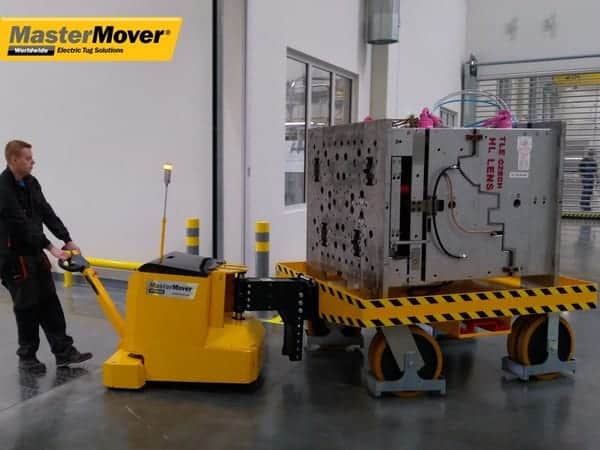

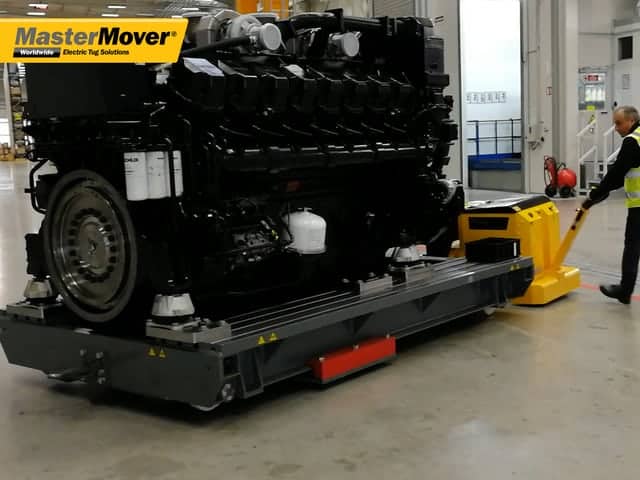

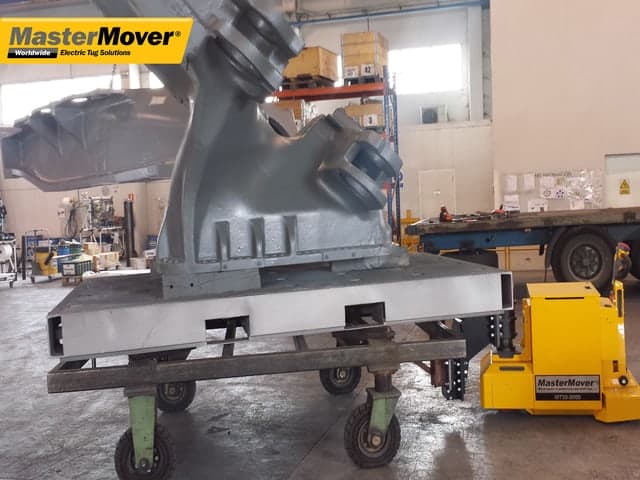

Application Gallery
Safety Features
Automatic cut off as tiller arm returns to vertical
 Anti-crush button
 Emergency stop button
 Warning horn
 Self-adjusting castor guard for foot protection
Options
flashing safety light and motion bleeper
two speed selector switch
wireless control handset
combi lock
quick release coupling pins
battery protection system
Lithium battery
ATEX
Couplings
Coupling – male – height adjustable combi – medium

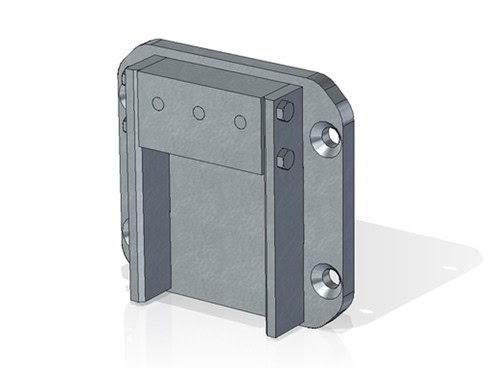

Coupling – female – combi – extra large
Coupling – channel coupling body
Bespoke couplings available
Technical Data
Identification
| Product code | MT1500+ |
| Recommended load weight – Castors | 33,000 lb |
| Recommended load weight – Rails | 132,000 lb |
| Machine weight including battery | 1,100 lb |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Polyurethane |
| Drive motor power | 2 kW |
| Controller type | AC |
| Variable machine speed | 0.1 mph – 3.1 mph |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 179Ah 24V – interchangeable | Â |
Charging options
| Charger – internal – 20A 24V – 110V-240V | Â |
| Charger – external – 30A 24V – 110V-240V | Â |
Additional equipment
| Option – flashing safety light and motion bleeper | Â |
| Option – two speed selector switch | Â |
| Option – wireless control handset | Â |
| Option – battery protection system | Â |
Male coupling options
| Coupling – male – height adjustable combi – large | Â |
| Coupling – male – height adjustable box – large | Â |
| Coupling – channel coupling body | Â |
Female coupling options
| Coupling – female – combi – large | Â |
| Coupling – female – box – large |
Dimensions
