Multi-Link PS3000+ | Wireless Controlled Power Steered Electric Tug

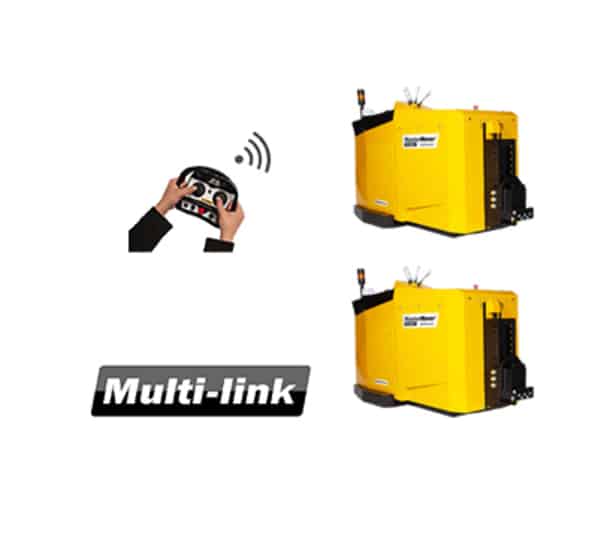

Multi-Link Systems by MasterMover allows a single remote operator to simultaneously control up to 12 tugs through a synchronised movement. This modular, scalable and future-proof application enables a Multi-Link System of PS3000+ units to manoeuvre loads ranging from 66,000 lbs up to 790,000 lbs. Multi-link systems ensure safe, precise and effective product manipulation leading to improved production efficiency and reduced risk of product damage.
- Complete wireless control
- Hydraulic weight transfer
- Interchangeable batteries
- Up to 794,000 lb load capacity
- Self adjusting hydraulics
- FEA tested steel chassis
- Link up to 12 machines
Application Gallery
Safety Features
Self adjusting castor guard
 Emergency stop
 Warning horn
 Self levelling hydraulics
 Full wireless control
 Status light
 Flashing safety light and motion bleeper
 Option – additional operator wireless E-stop – 1 machine
Options
Option – single battery transportation trolley
 Option – status light
 Option – lifting and anchoring points
 Option – on board camera
 Option – battery protection system
 Option – additional operator wireless E-stop – 1 machine
 Option – ATEX
 Option – safety scanner
Couplings
Coupling – male – combi – extra large
Coupling – female – extra large
Bespoke couplings available
Technical Data
Identification
| Product code | PS3000+ Multi-link |
| Recommended load weight – Castors | 66,000 lb |
| Machine weight including battery | 2,800 lb |
| Drive type | Electric AC |
| Parking brake | Electromagnetic |
| Drive wheel type | Polyurethane |
| Drive motor power | 5 kW |
| Drive motor controller type | AC |
| Variable machine speed | 0-3.7 mph |
| Steering controller type | AC |
| Ingress Protection | IP44 |
Battery options
| Battery pack – sealed – 120Ah 48V – interchangeable | Â |
Charging options
| Charger – external – 20A 48V – 85V-265V | Â |
| Charger – internal – 20A 48V – 85V-265V | Â |
| Charger – battery station – 20A 48V – 85V-265V | Â |
Additional equipment
| Option – single battery transportation trolley | Â |
| Option – status light | Â |
| Option – lifting and anchoring points | Â |
| Option – on board camera | Â |
| Option – battery protection system | Â |
| Option – remote wireless E-stop – 1 machine | Â |
Male coupling options
| Coupling – male – combi – extra large | Â |
Female coupling options
| Coupling – female – extra large |
Dimensions
