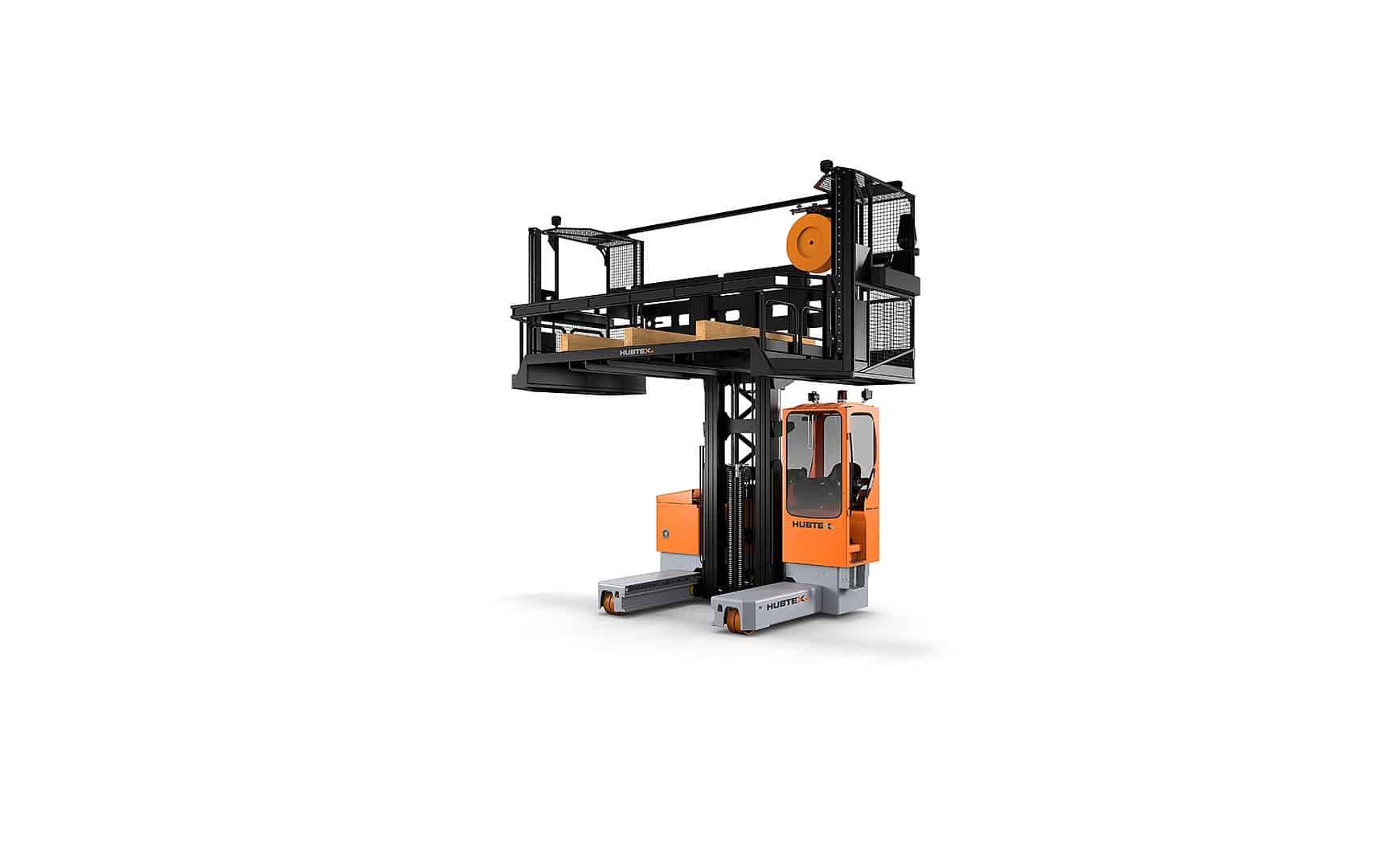

ELECTRIC MULTIDIRECTIONAL SIDELOADER WITH REMOVABLE ORDER PICKING PLATFORM AND VACUUM SUCTION DEVICE

ELECTRIC MULTIDIRECTIONAL SIDELOADER WITH REMOVABLE ORDER PICKING PLATFORM AND VACUUM SUCTION DEVICE

Category:

2in1

Complete multidirectional sideloader

Complete order picking vehicle

Theย multifunctional 2-in-1 solutionย โ€“ on the one hand, theย electric multidirectional sideloader with removable order picking platform from HUBTEXย can be used as a conventional multidirectional sideloader. On the other hand, by attaching a platform, it can also function as a complete order picking vehicle.ย
In theย KP series configuration, the picking process is manual, while in theย VKย configuration, the picking process is completely automated with the aid of the vacuum suction device.
Our VK models can be used to prevent any damage caused by the manual picking of wood sheets.ย

FEATURES

ELECTRIC MULTIDIRECTIONAL SIDELOADER
conventional electric multidirectional sideloader. These are already designed for handling long loads in their basic configuration, even inย narrow aisles.
A great advantage of these vehicles is that they can be supplemented by aย large number of other equipment options.
DETACHABLE PLATFORM
For use as a pure order picking vehicle, the multidirectional sideloader is supplementedย by a removable platform, the attachment takesย maximum five minutes. The operator then controls the systemย from the platform. They pick the sheets either alone or in conjunction with another operatorย directly from the rack compartmentsย to the vehicle.
CONTROL PANELS ON THE PLATFORM
The electronics are configured in such a way that, if required,ย two control panelsย can also be installed. For the best possible view, the front panel in the direction of travelย is always activated

.

VACCUM SUCTION DEVICE
In order to furtherย reduce the risk of damageย to the materials, aย vacuum suctionย device can be optionally added to the picking platform of the HUBTEX electric multidirectional sideloader. Extendible suction cups extract individual sheets from the rack compartment and then deposit them again directly on the platform. In this case,ย onlyย one personย is required for operation. The great advantage of this modular solution isย its flexibility. The multidirectional sideloader can be usedย cost-effectivelyย for both load handling and order picking with a medium handling capacity.

Series

KP Depending on the application requirements, the platform from Series 2125 / 2130 / 2131 / 2132 can be attached
KP + Vacumax Depending on the application requirements, the platform from Series 2125 / 2130 / 2131 / 2132 can be attached
