SKIP AND CONTAINER TRANSPORT

SKIP AND CONTAINER TRANSPORT

Category:

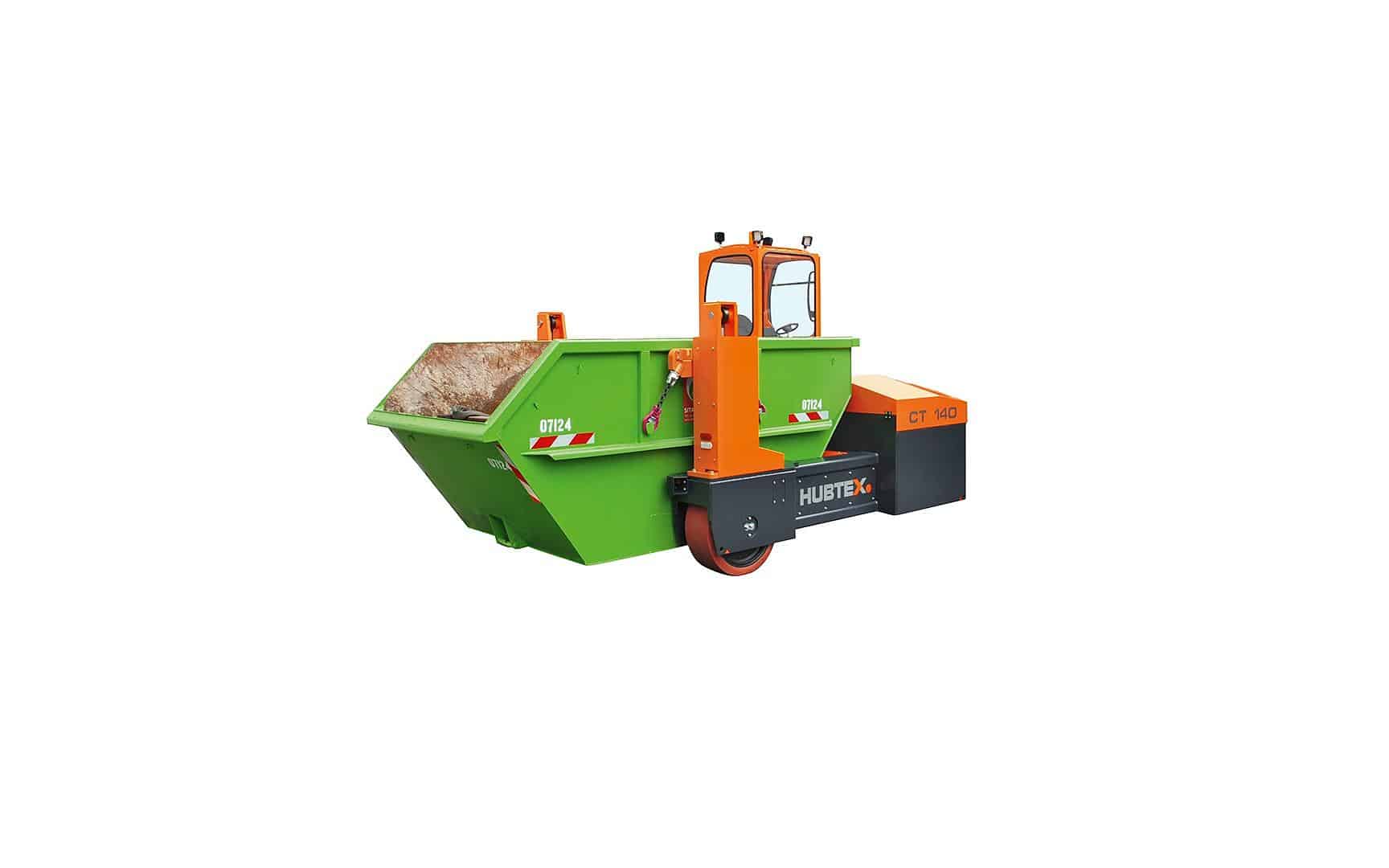

Wastewater treatment plants, waste incineration plants and waste disposal plants rely primarily on skips and containers as load carriers in their logistics. For overall economical processes, these quickly reach a weight of more than 10 tons, which can no longer be handled efficiently with standard lift trucks in the container station or outside areas. HUBTEX has therefore developed its own skip and container transporter with a load capacity of up to 25 tons especially for this area of application. These can also be individually adapted to their place of use, for example in the Koblenz wastewater treatment plant.

FEATURES

DIFFERENT LOAD HANDLING OPTIONS
The special-purpose vehicle manufacturer HUBTEX offers its skip and container transporters in three variants.

  • Swivel arm / carrying rails
  • lifting cables
  • Fork handling
When the load is picked up with the swivel arm / carrying rails, the skip is bypassed, the swivel arms extend, are fixed in place and then lift the skip. The driver does not have to leave the vehicle during this process.
With the load lifting variant using lifting cables, the truck bypasses the skip, the lifting sling is hitched manually on both sides and the load is then lifted.

OPERATION
Depending on the application, individual frame production and corresponding cab variants are possible. The driver’s seat is positioned at 90° to the load. This puts the cab in an optimum position with low entry height and excellent all-round visibility during travel and load pick-up. Along with the vibration-damped cab, this makes comfortable working possible. The perfectly configured operator terminal enables precise maneuvering of the vehicles.
CHASSIS
The vehicle is based on a three-point chassis which, due to its small turning radius, can even be maneuvered through complex bottlenecks without any problems. In addition, it provides stability during transport, even in poor ground conditions, as it maintains contact with the ground at all times.
Due to the choice of three different tire variants PU-soft, PU and EL, our container and skip transporters can be used in combined indoor and outdoor applications.

Serial Prefixes

Series Load capacity (t) Load handling Lift height (mm) Chassis Tire equipment Drive Cab
4200 10/14/25 Lifting cables/swivel arm/forks up to 500 3-wheel PU/EL Electric Transverse seat
